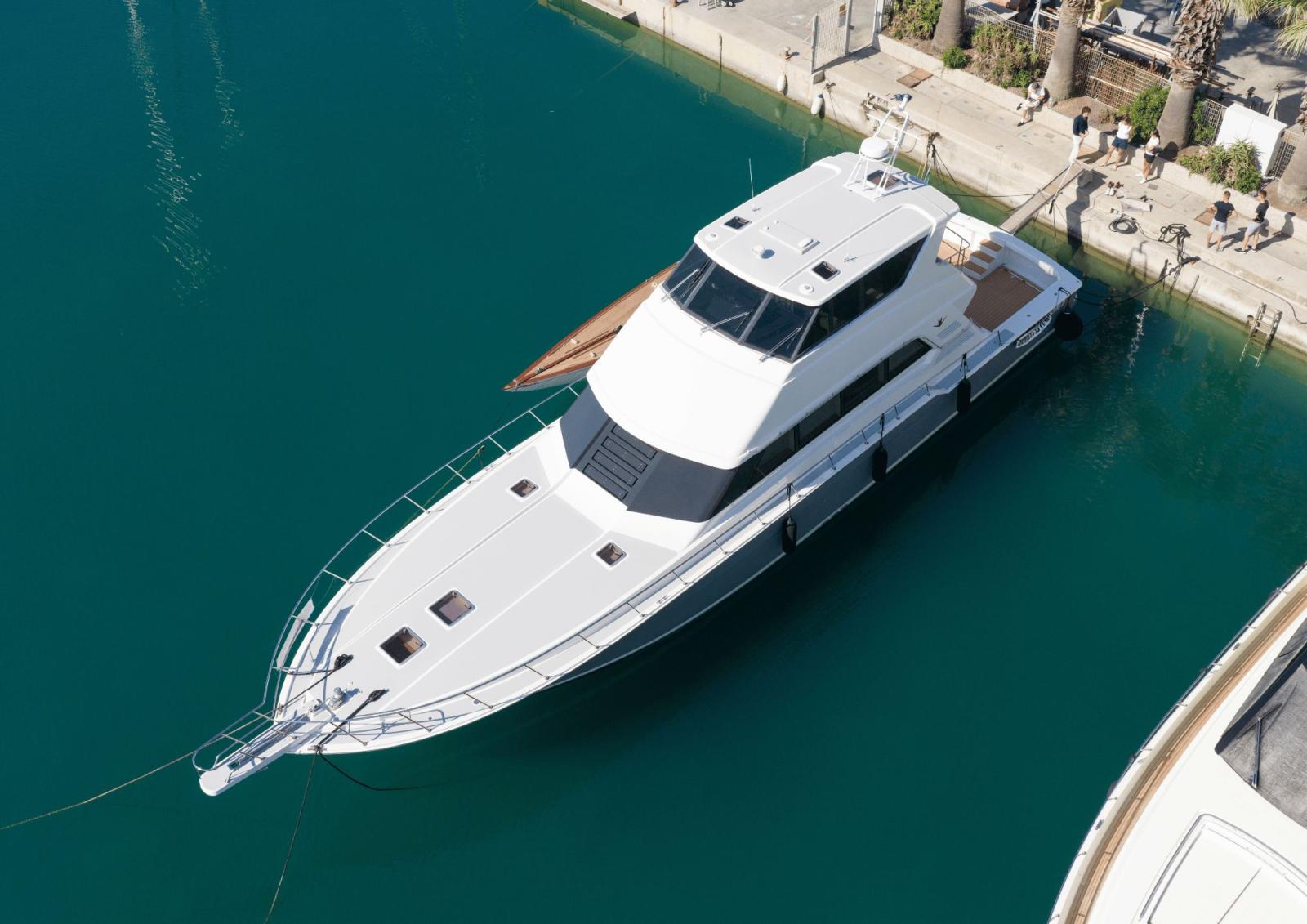

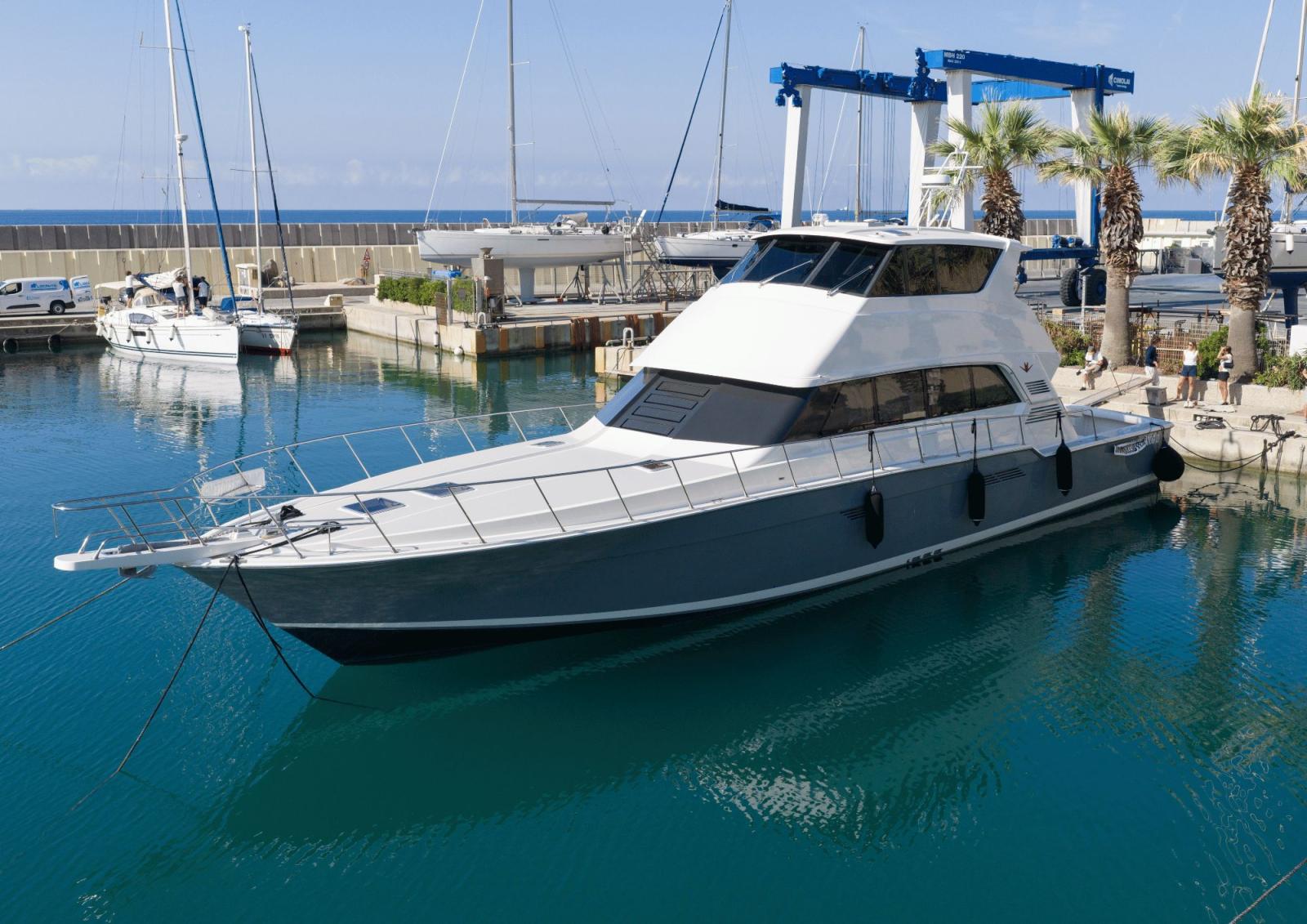

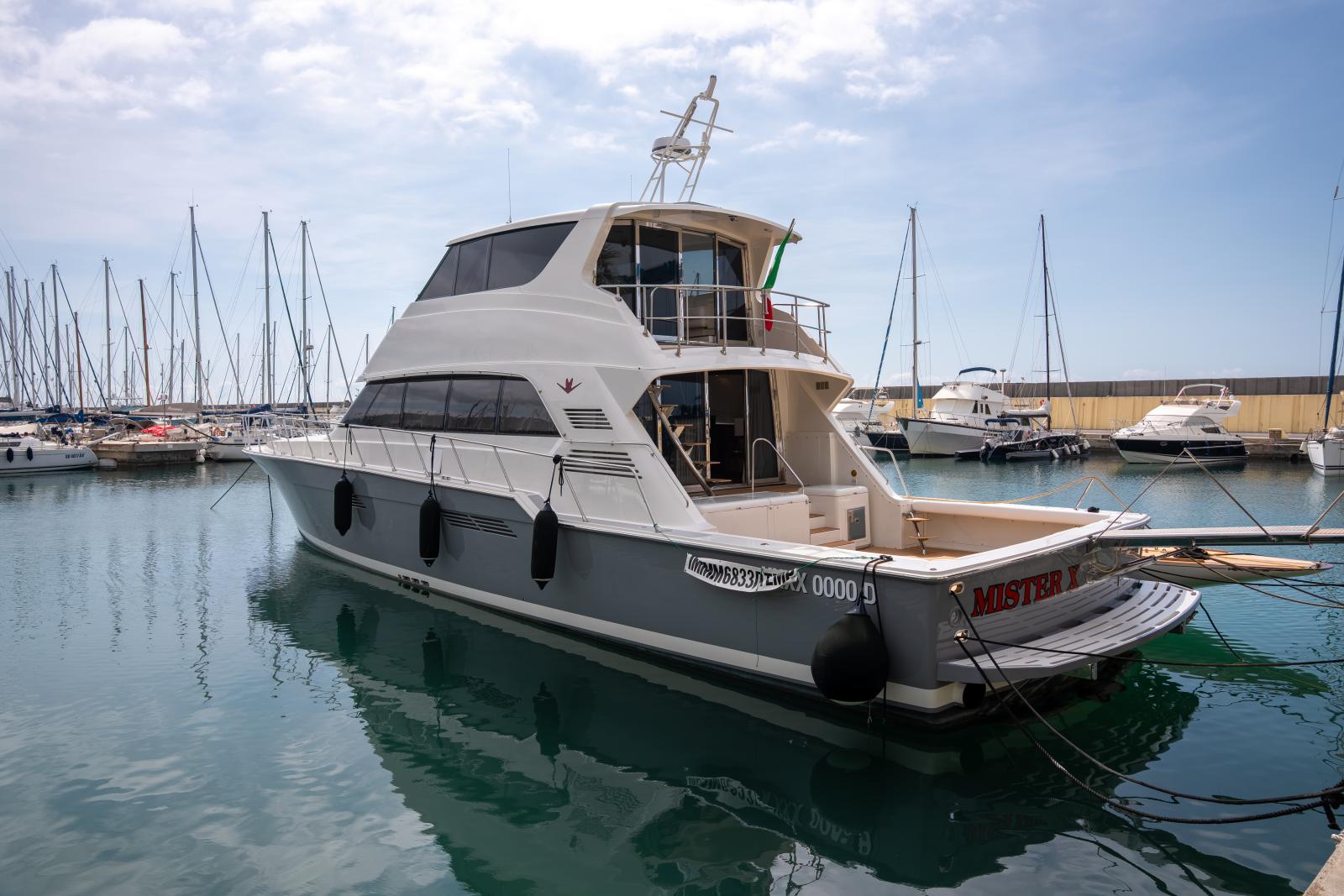

bertram bertram 76 Used

Interior Layout (from Bow to Stern)
Crew Cabin – folding berth, WC, washbasin, handheld shower

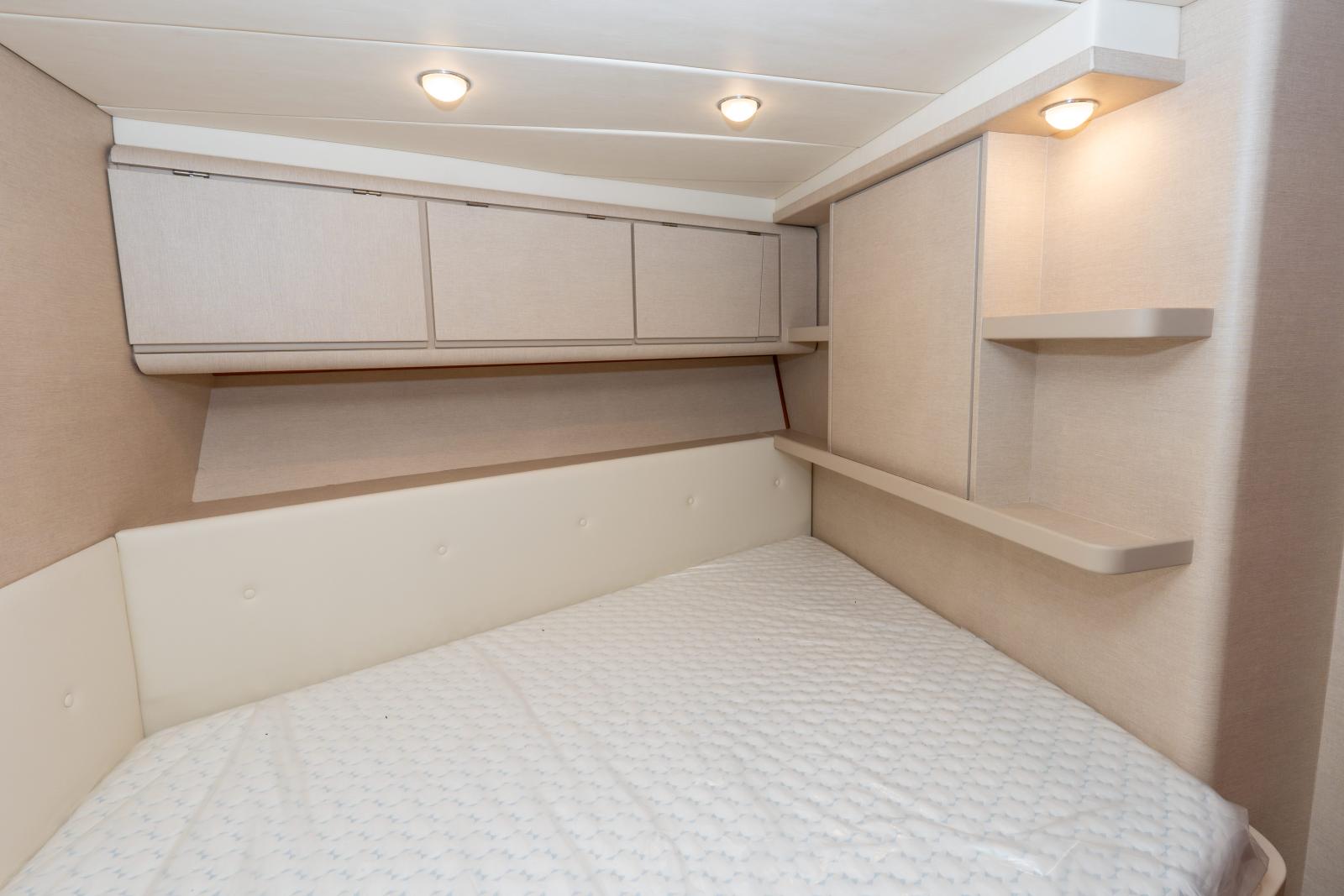

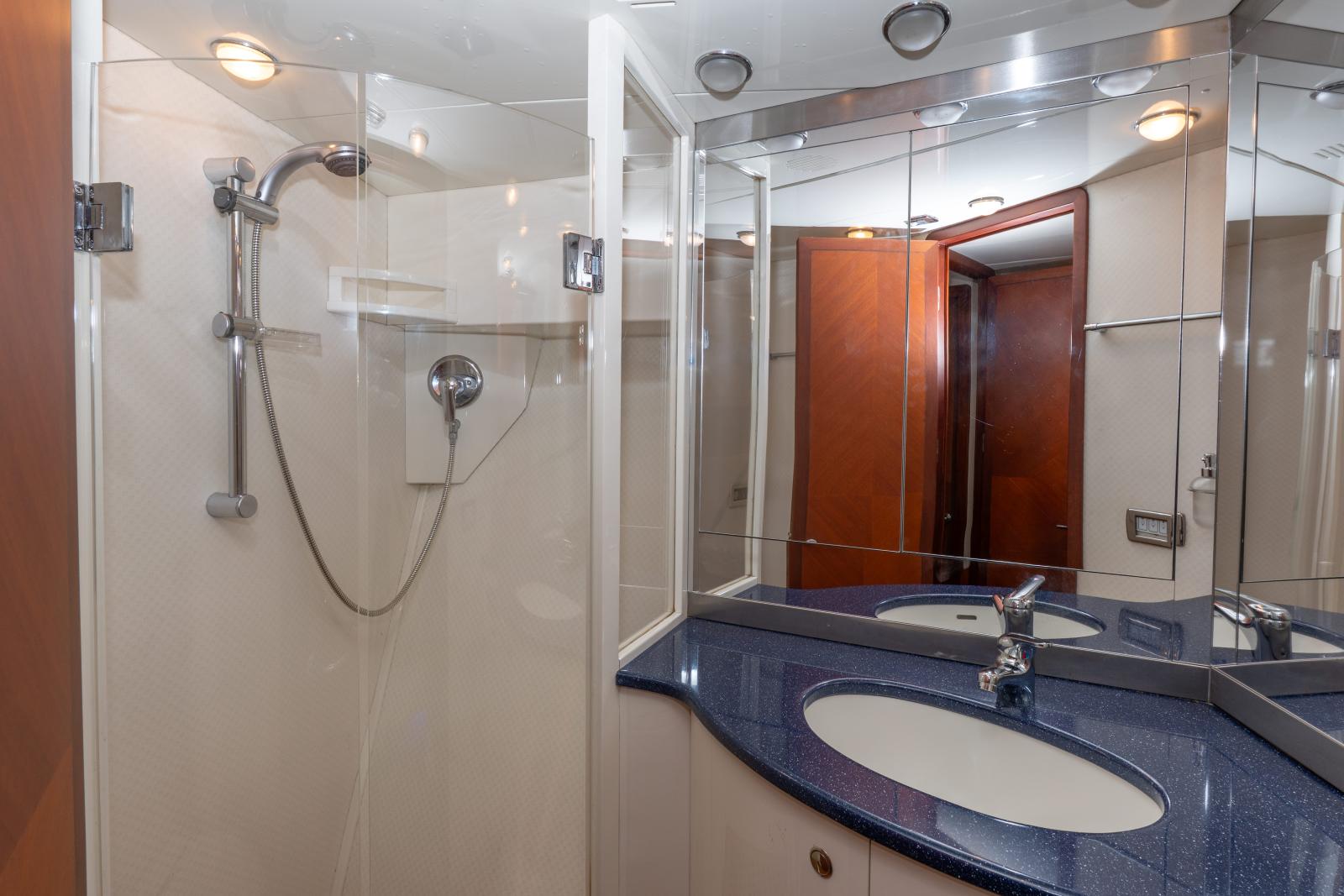

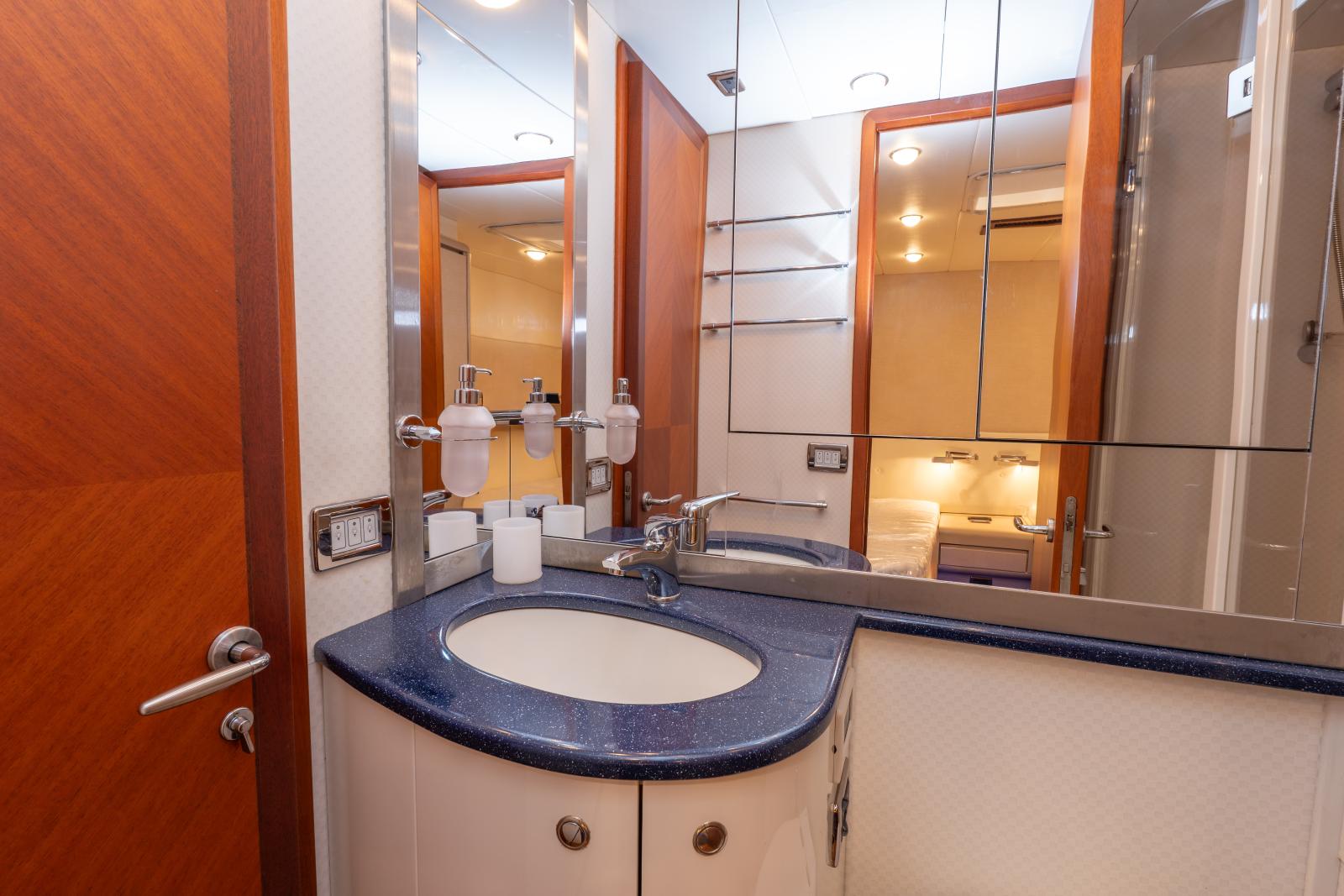

Forward VIP Cabin – double bed, bedside tables, wardrobe, drawers, en-suite bathroom with separate shower

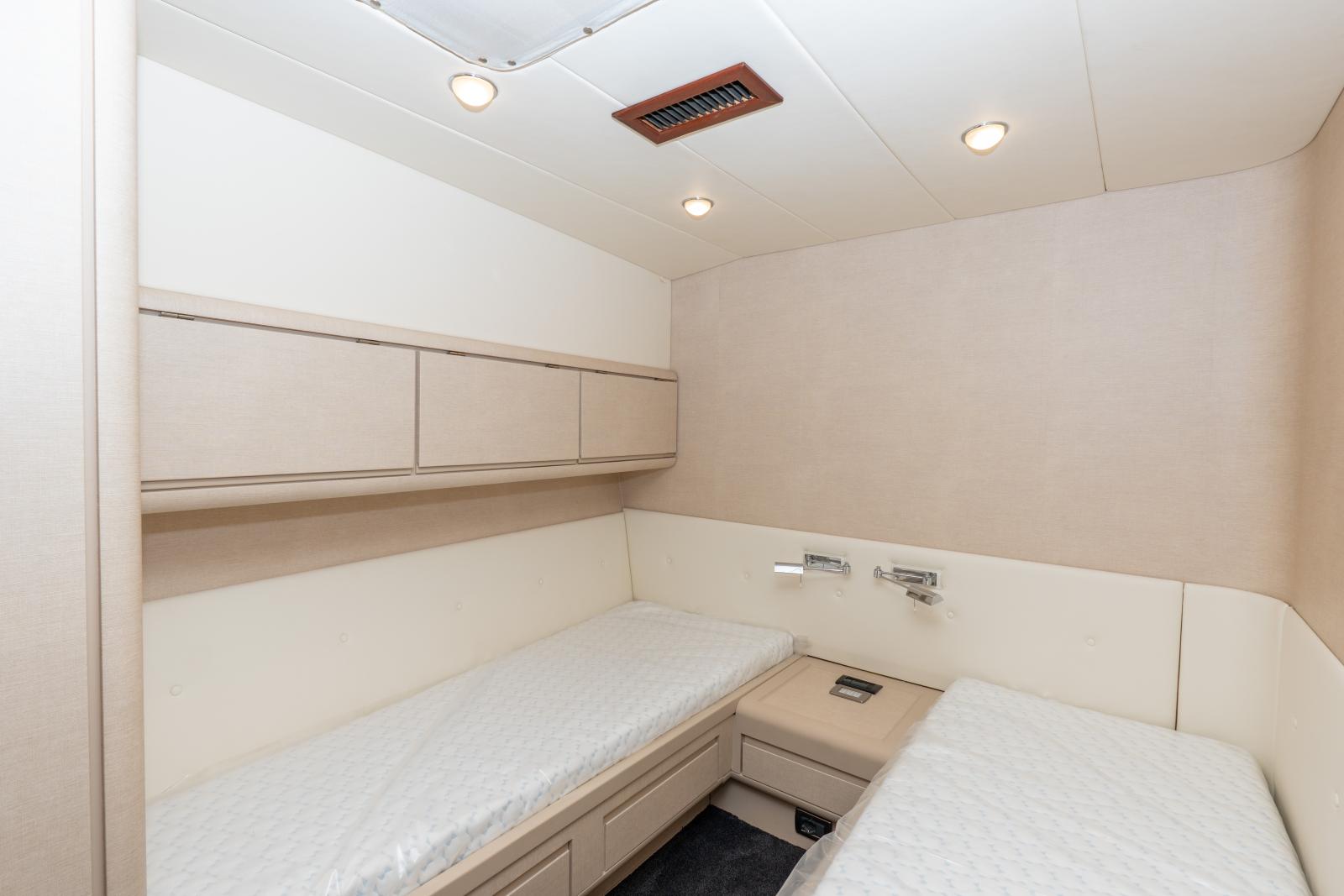

Starboard Guest Cabin – 2 separate berths + third pullman berth, en-suite bathroom (also accessible from the corridor)

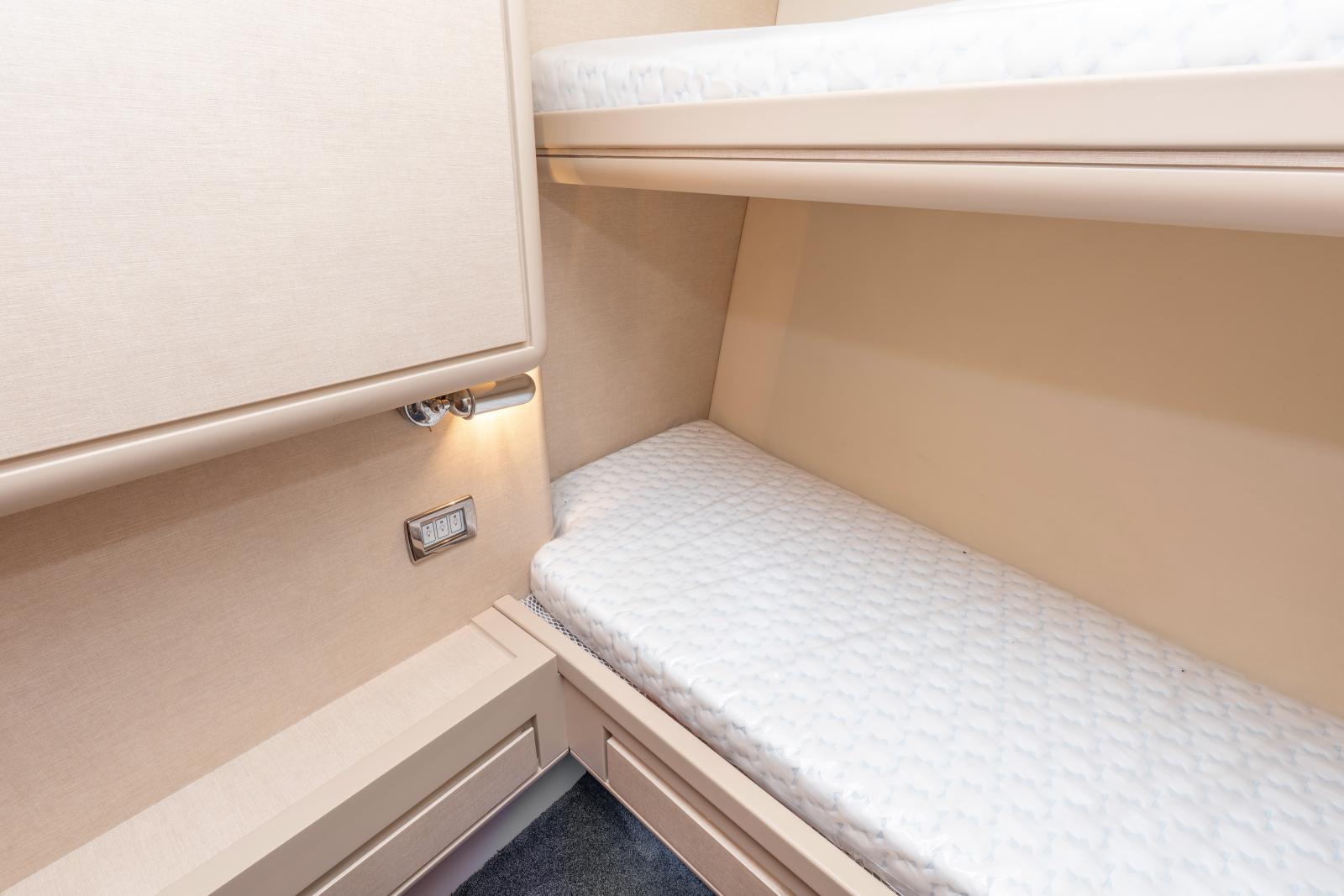

Third Guest Cabin (Port Side) – bunk beds, wardrobe, drawers

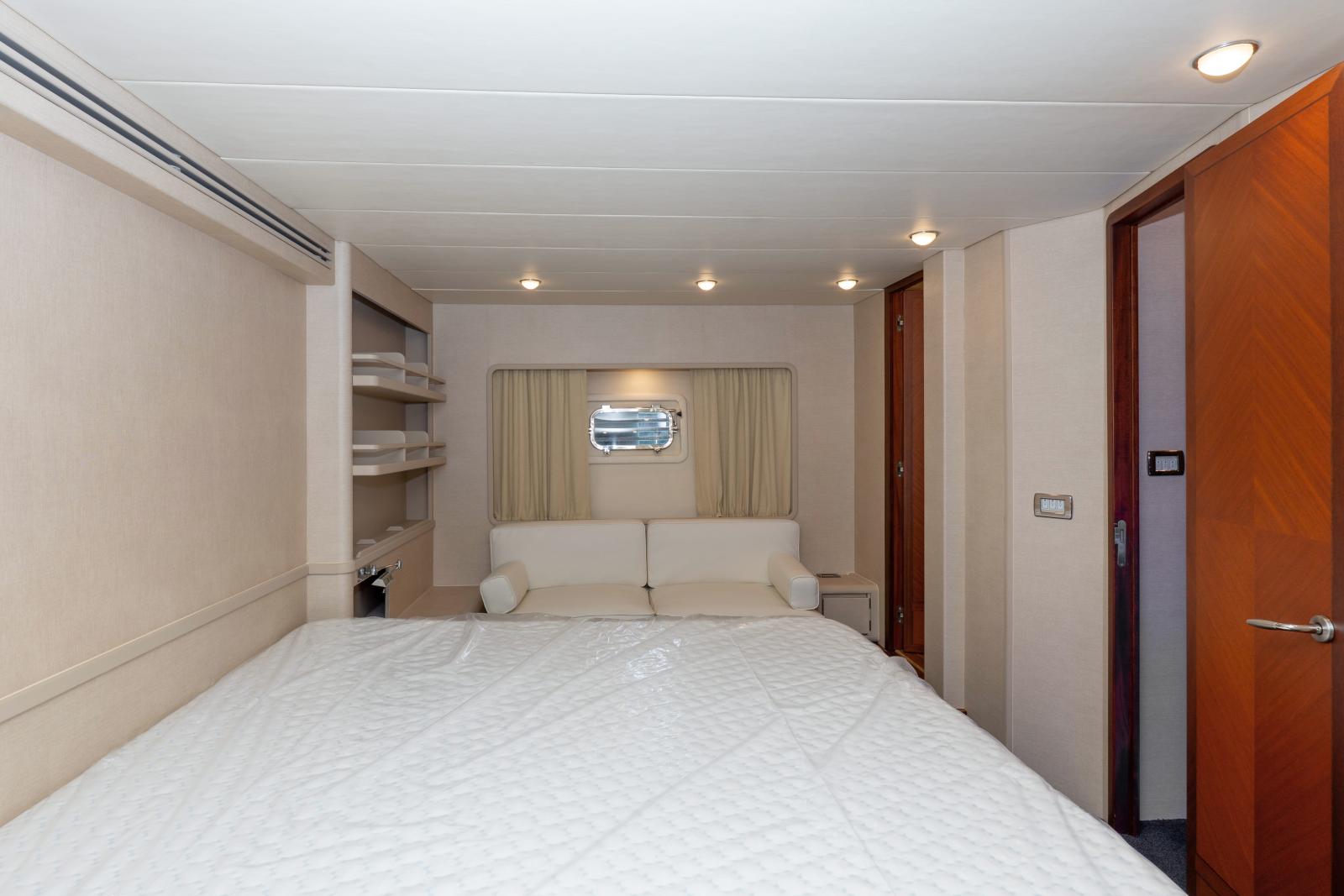

Full-Beam Owner’s Cabin – double bed, sofa bed, desk, two wardrobes, bedside tables, vertical bookshelves, bathroom with separate shower, WC and bidet

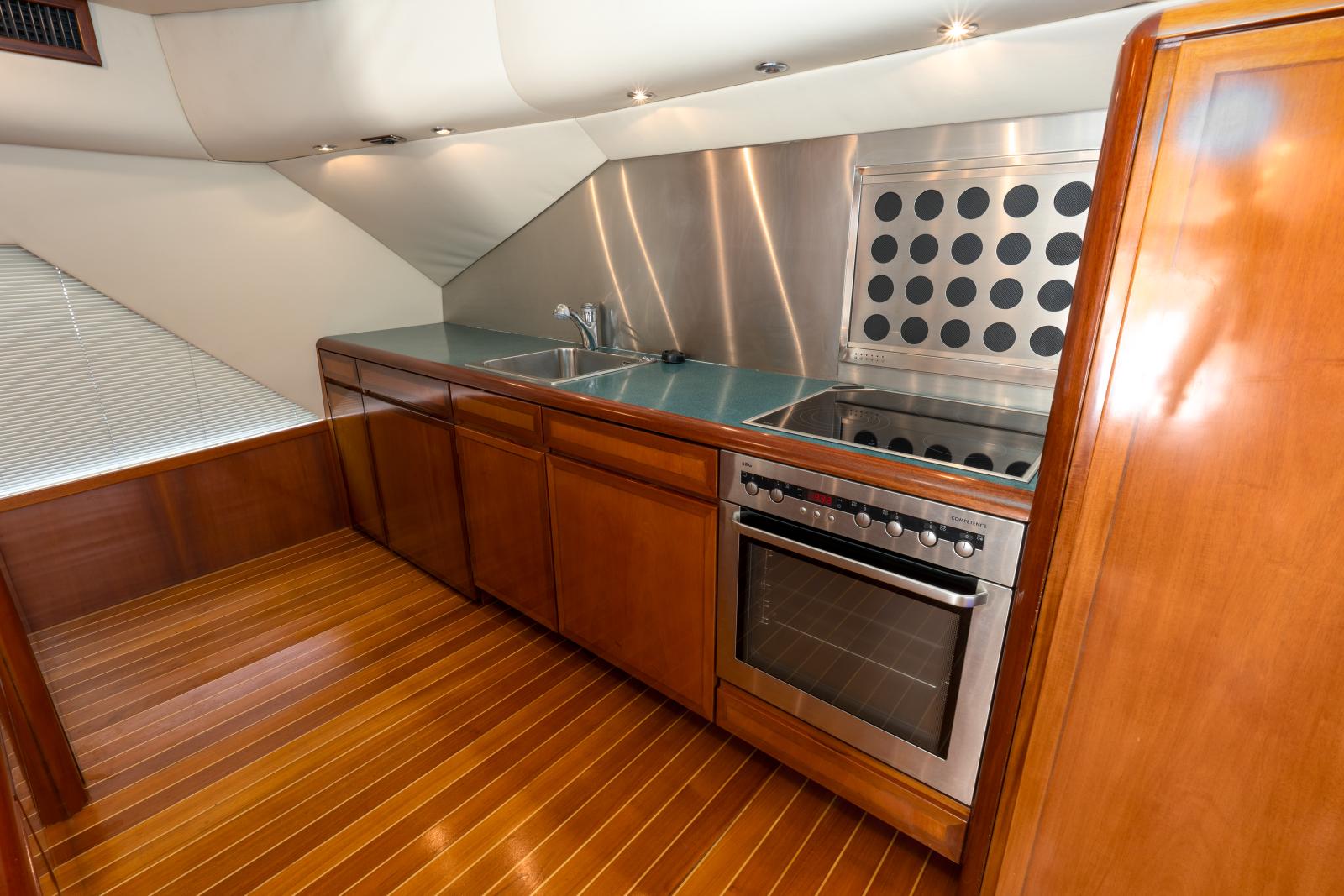

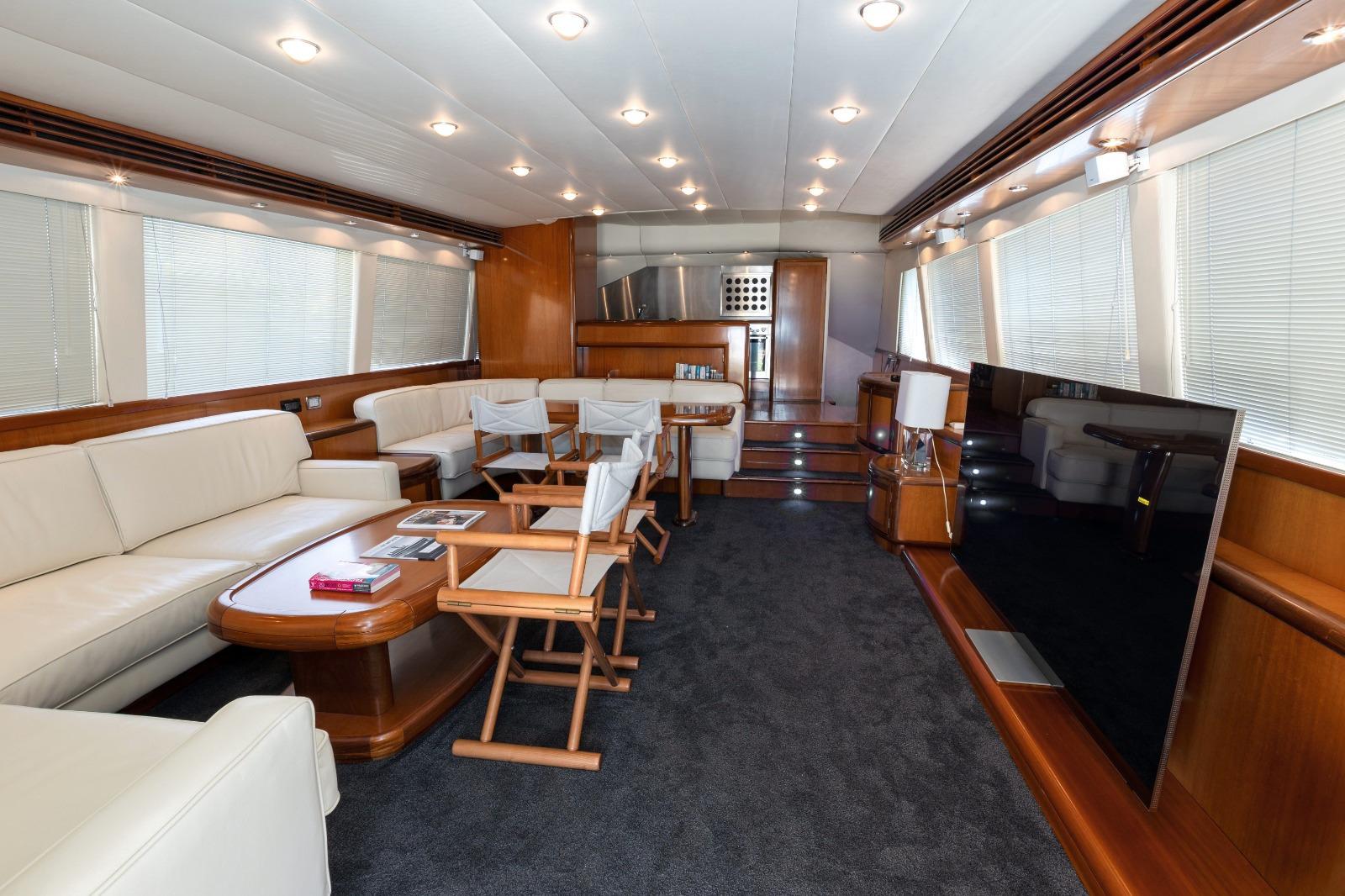

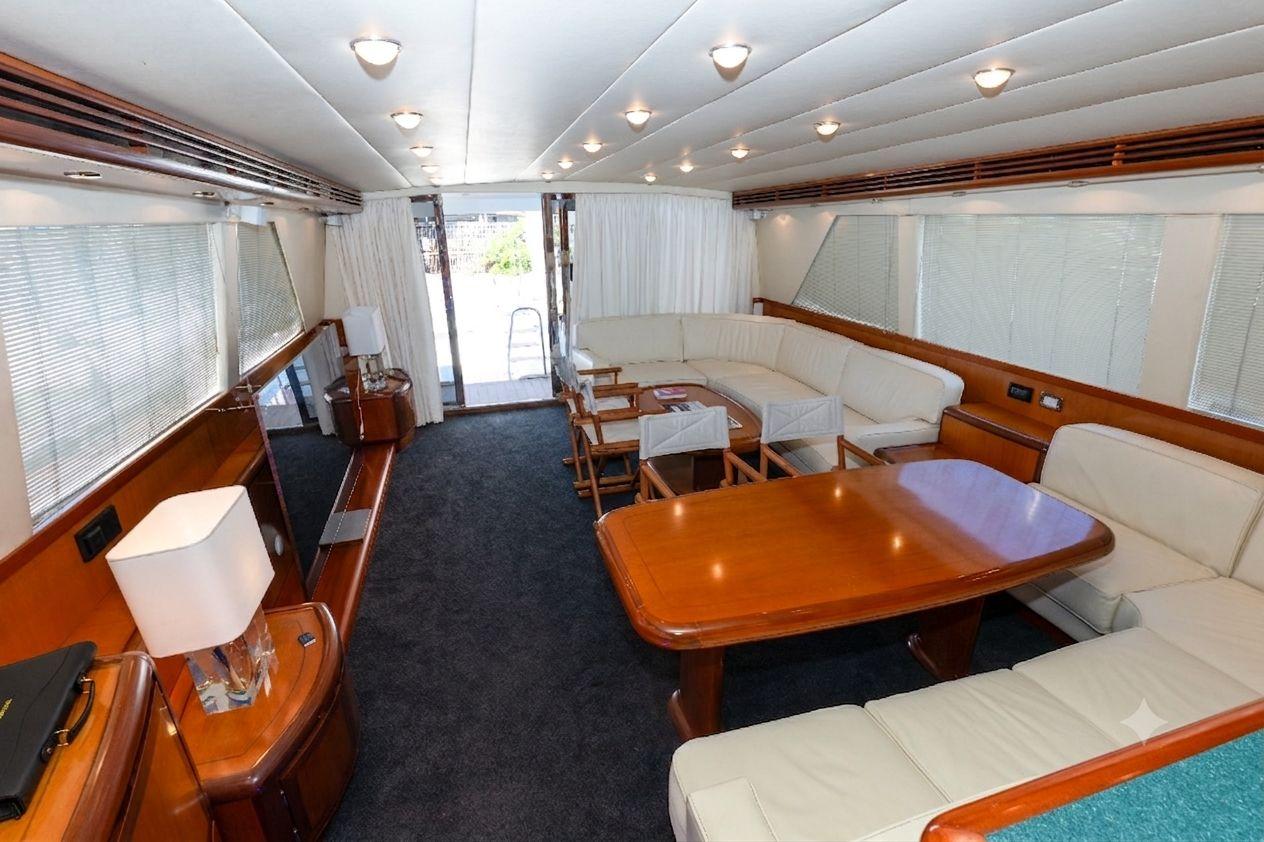

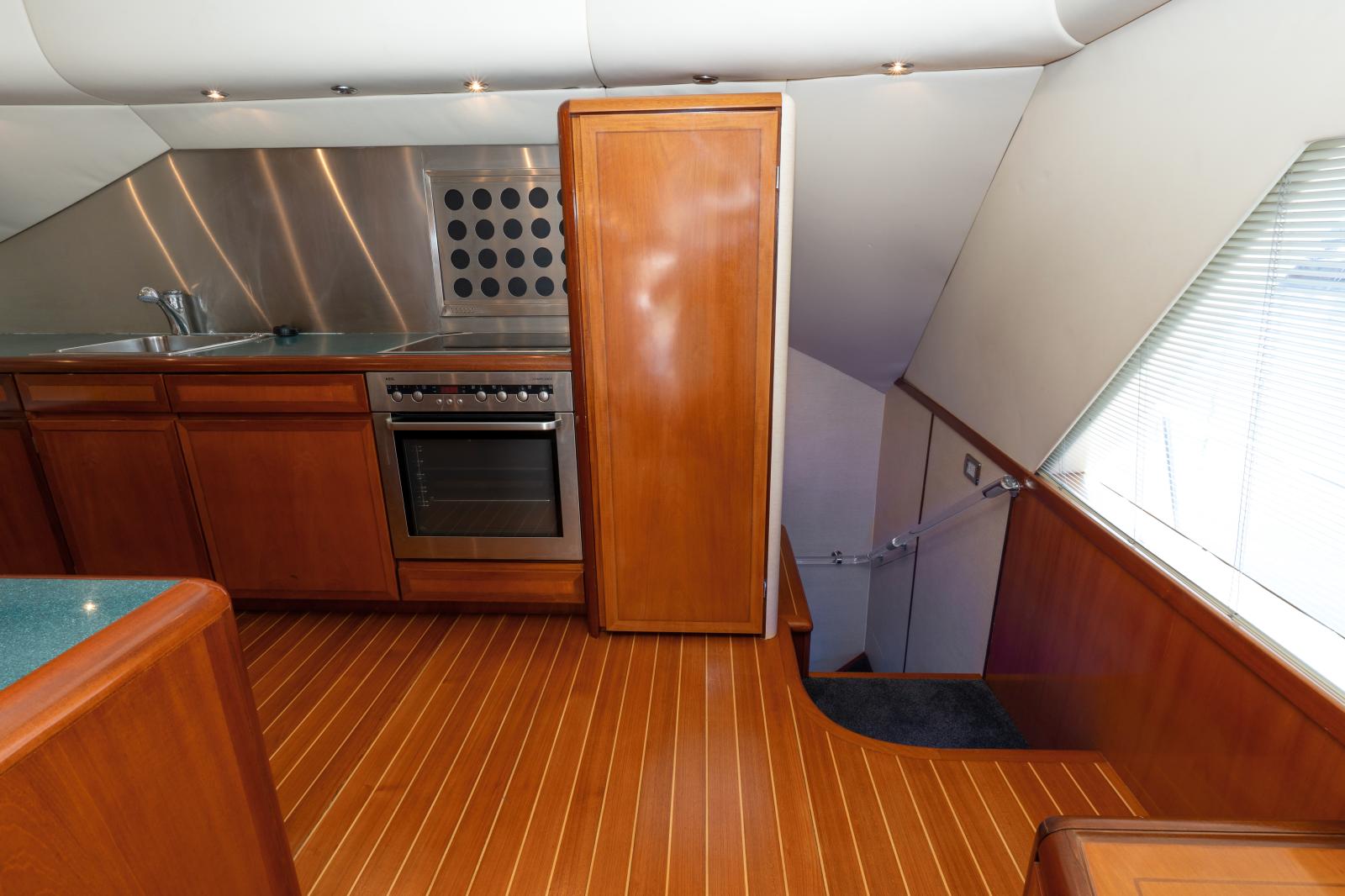

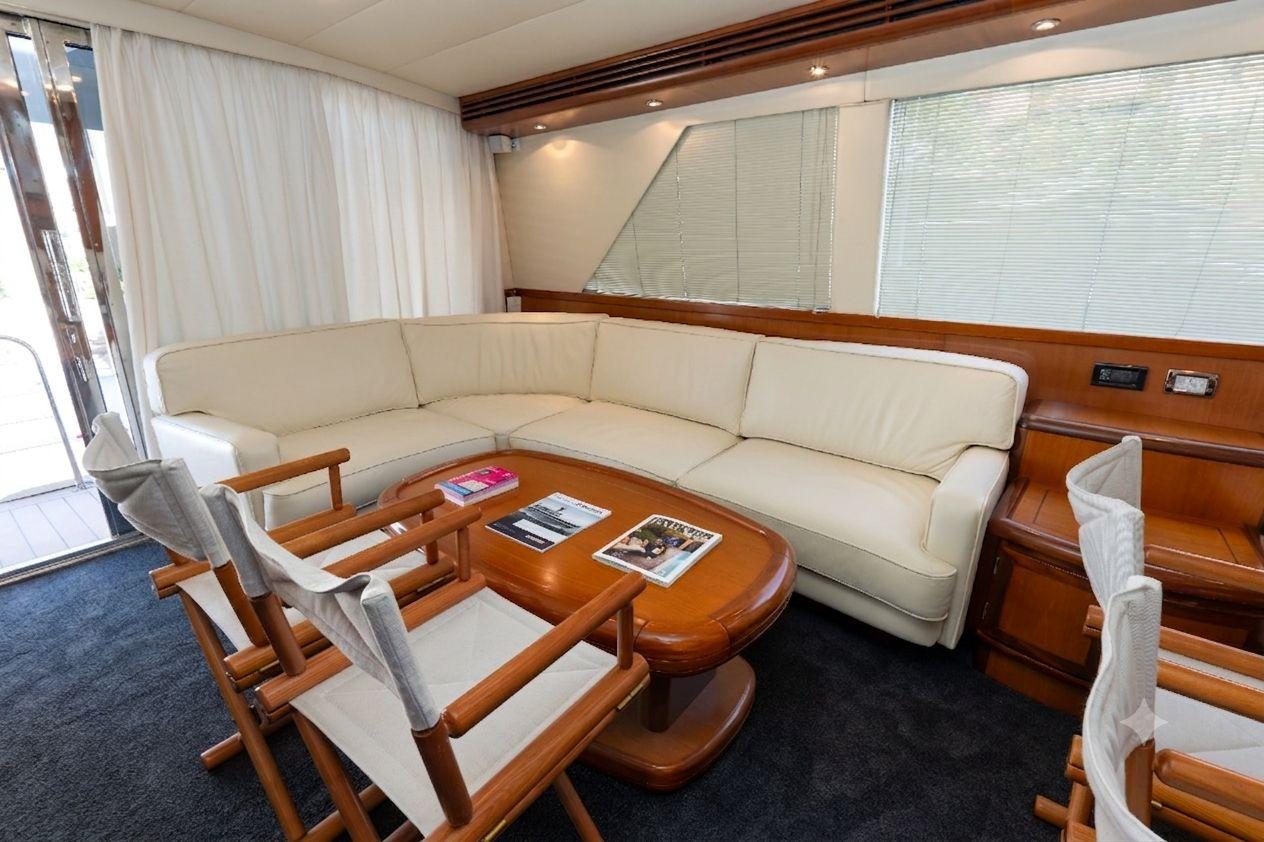

Dinette/Salon – fully equipped galley (440 L refrigerator, dishwasher/washer-dryer, trash compactor, ceramic glass cooktop, oven), leather sofas

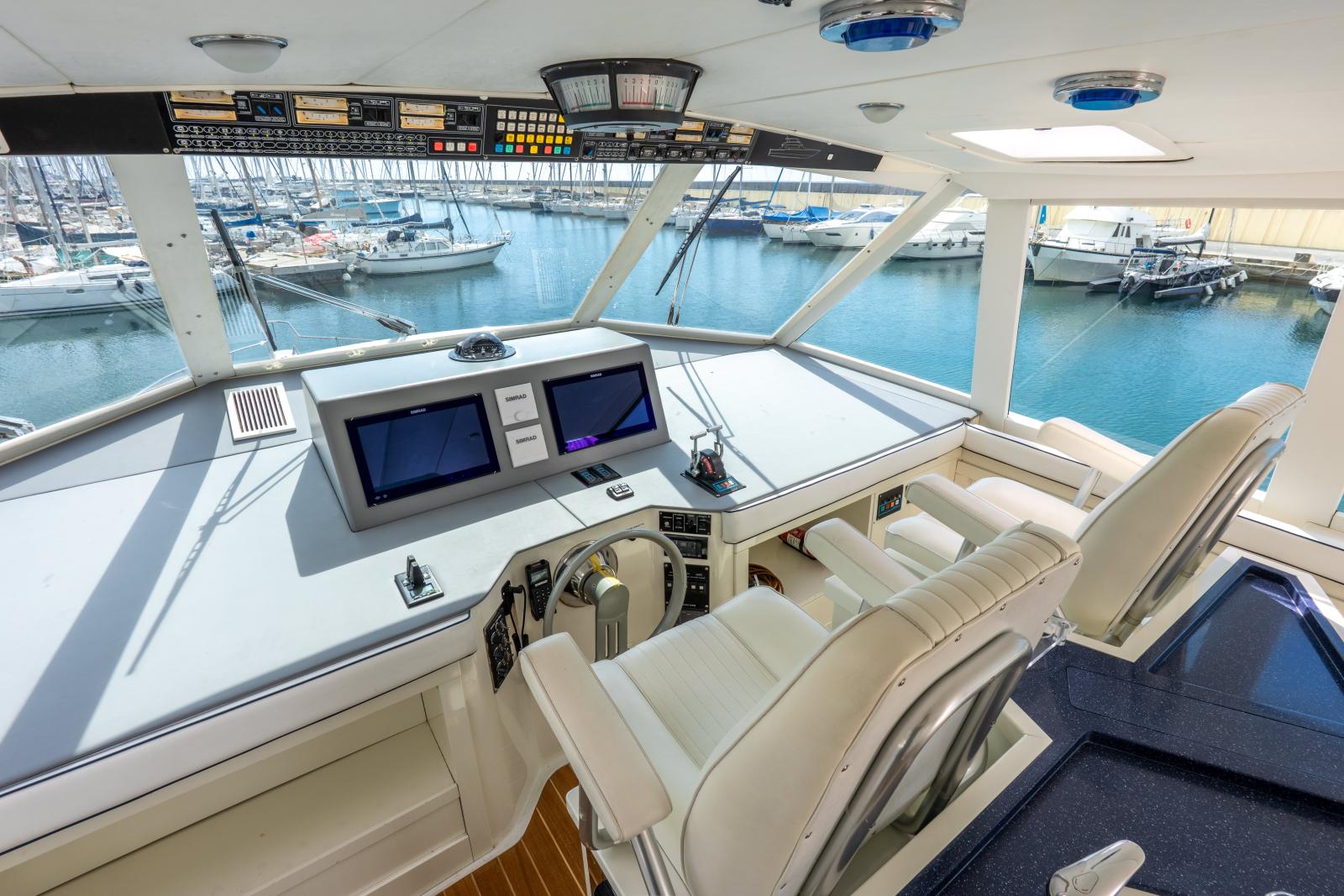

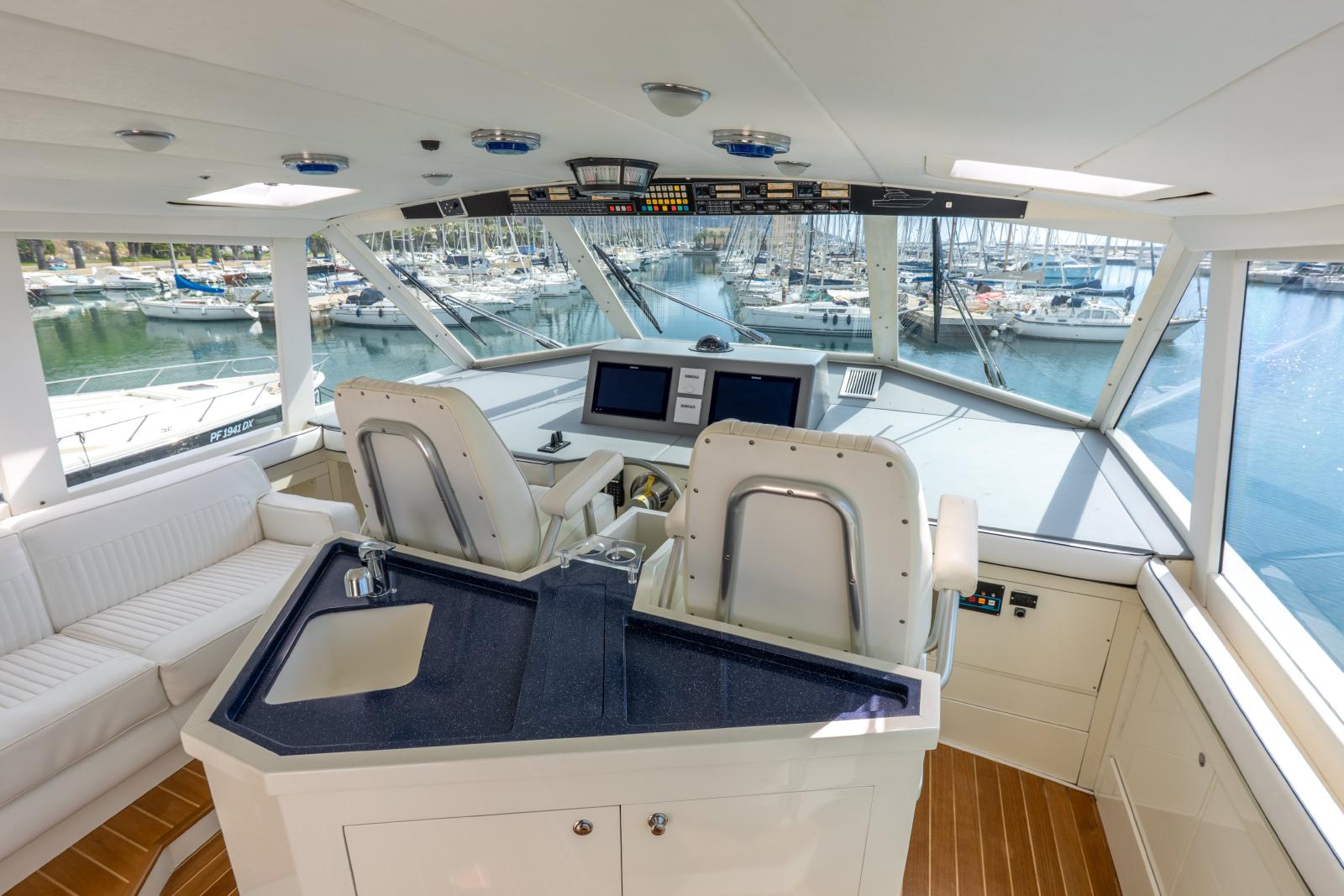

Flybridge/Wheelhouse – enclosed and air-conditioned, two sofas, fully equipped helm console, TV-Sat monitor, washbasin, service refrigerator
Equipment & Technical Specifications
Engines & Propulsion

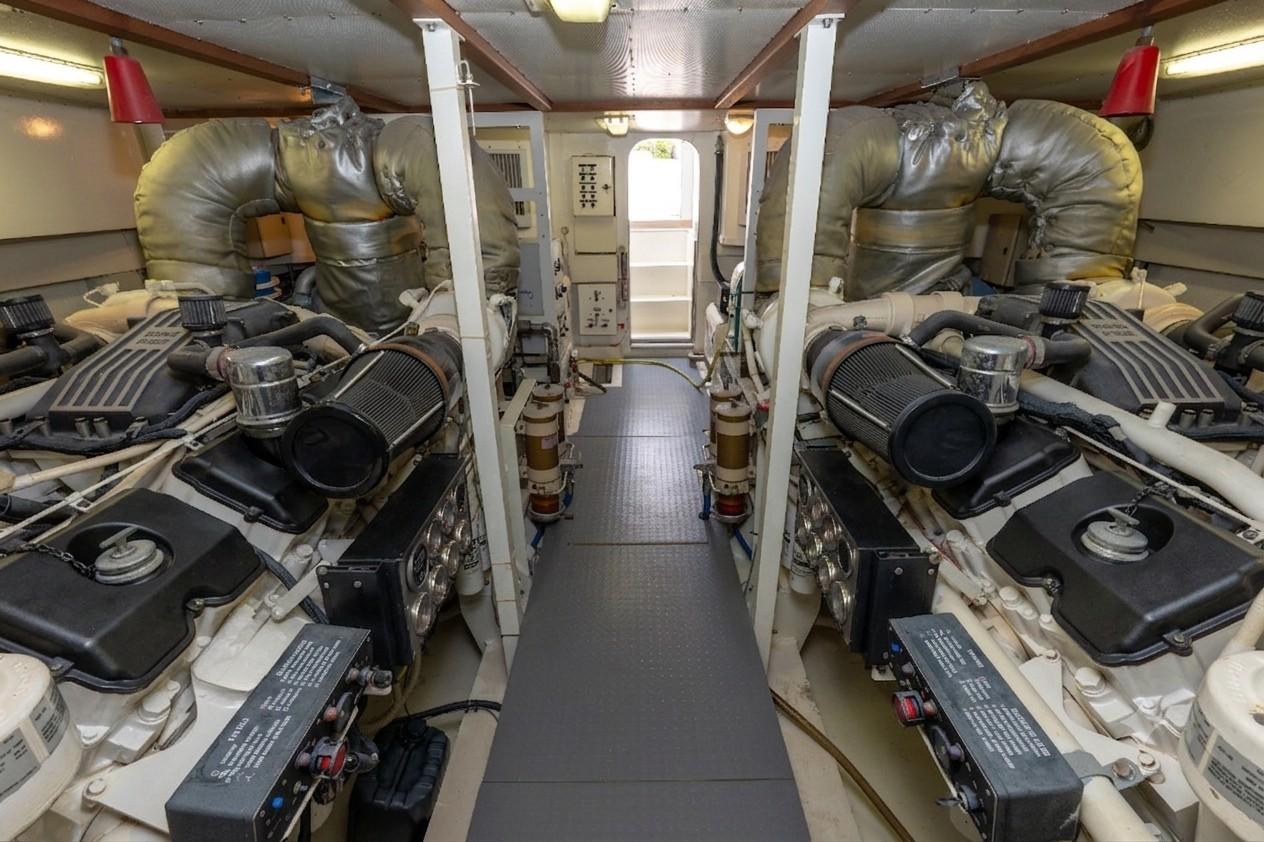

2 x Caterpillar 3412E – 1,450 HP each, ZF BW195A gearboxes (2.92:1 ratio)
2 x Racor 75/1000MAX fuel filters per engine, with audible alarms at the helm
Caterpillar Marine Engine Vision System computerized monitoring system
4 x exhaust gas temperature pyrometers with alarm control unit
Duramax Marine shaft line sealing systems
URB-STD rudder shaft alignment bearings (Tides Marine, USA)
Bennett trim tabs
Generators
2 x Kohler 20 kW (220 VAC / 50 Hz) – generator hours: 468 h / 328 h
Mastervolt Whisper 3500 night generator (3.5 kW)
Centralized engine/generator oil change system
Navigation & Communication Electronics
Furuno FR-2115-B radar with ARPA and chartplotter (98 NM range)
20.1" Hatteland Instruments monitor (CE, DNV, GL, ABS, Lloyd’s)
Plath Navipilot V HSC autopilot
Furuno SC-60 satellite compass
2 x Furuno GP-1850 chartplotter/GPS/echo sounder units
Furuno NX-300 Navtex
Sailor C-4901 VHF with DSC
Globalstar (satellite and GSM telephone)
5" magnetic compass
Inmarsat/Navtex 3C EPIRB with GPS
Audio/Video Systems
Seatel Model 2494E satellite TV antenna
2 x Nokia 9701 satellite receivers
Sharp LCD monitors: 20" in the salon and 15" in the wheelhouse
Bose Acousticmass 15 speakers (salon, “Home Cinema” system)
Sony DVP-S9000ES DVD/CD player + Sony STR-DE545 AV receiver (5 x 100 W, 5-channel surround)
Sony CMT-SD1 CD receiver/player in the wheelhouse (2 x 25 W)
Additional speakers in the cockpit
Engine Controls – Kobelt
Control panel
Remote control
Central digital processor
Electric clutch
Electronic steering
Control system
Rudder angle feedbac
Autopilot pump
7.5" cylinders (x2)
Tiller
Tie bar Panoramic rudder angle indicator
General Systems
Tanks: 3 diesel tanks + 2 additional tanks (over 10,400 litres total), 2 freshwater tanks (1,892 litres), 2 black water tanks (757 litres)
HRO System 10/600 watermaker (95 L/h)
Double Gianneschi & Ramacciotti J4-B pressure water pump (50 + 50 L/min, 2.6 BAR)
Sein UNS 10184 tank level monitoring system with LCD display
VECO 90,000 BTU air-conditioning system (water circulation) – fan coils in each cabin, twin 17,000 BTU fan coils in the owner’s cabin, salon and wheelhouse
Engine room air-conditioning with 4 electric fans (800 m³/min)
CO₂ fire-extinguishing system in the engine room and main diesel tank
24 VDC electrical system (3 x 250 Ah Mastervolt gel battery banks) + 220 VAC
Mastervolt automatic battery chargers/rectifiers (75 Ah + 50 Ah)
Glendinning shore power cable reel
Deck & Exterior
Exterior paintwork

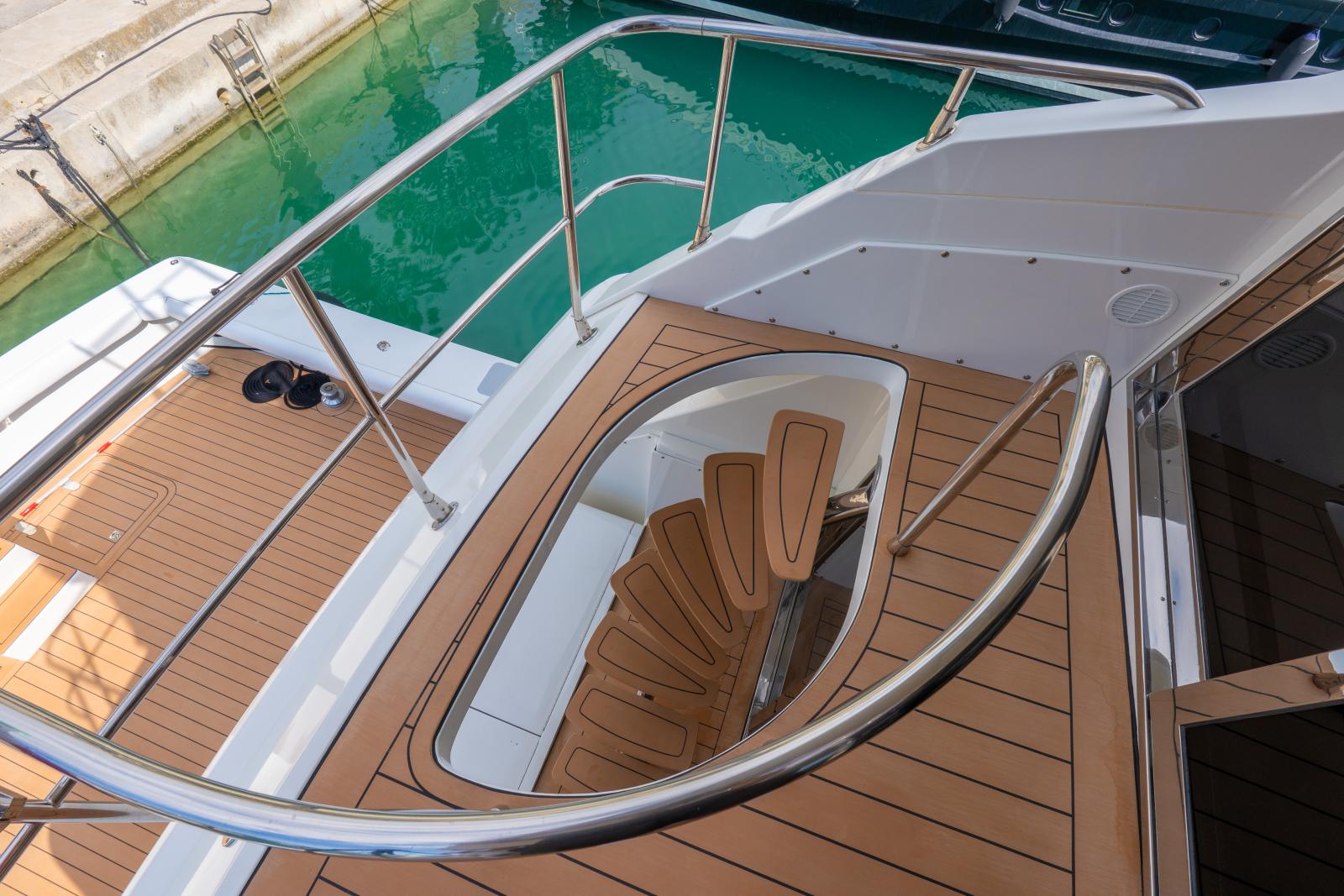

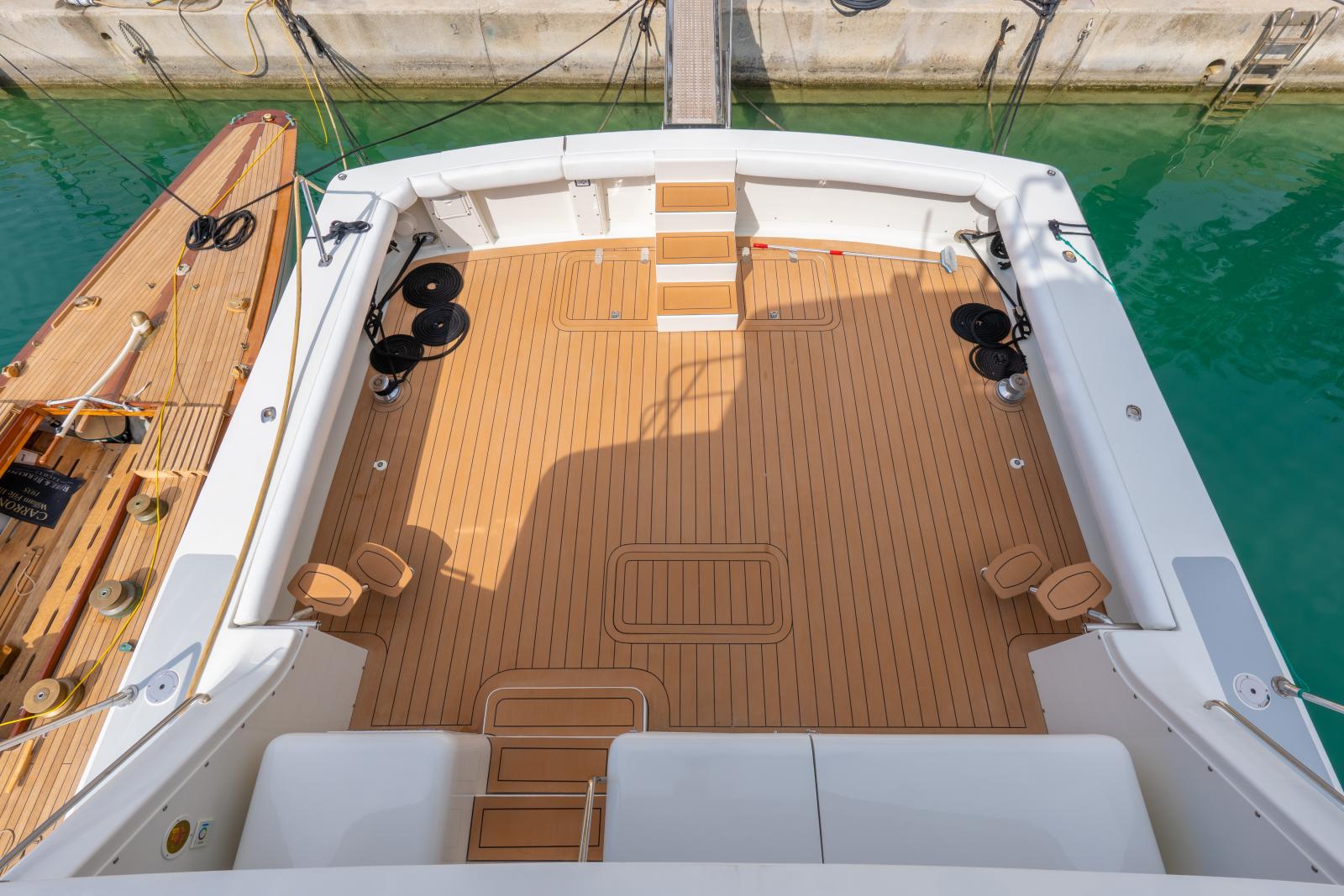

​​​​​​​Teak decking in the cockpit and salon/flybridge entranc
Exhalto “Low Profile” stainless-steel hatches (4 + 1 on flybridge, 2 internal flybridge hatches, 1 external flybridge hatch
Lofrans 3000 W / 24 V windlass with remote control
2 x Lofrans 1500 W mooring/winch capstans
Complete AISI 316 stainless-steel pulpit and handrails

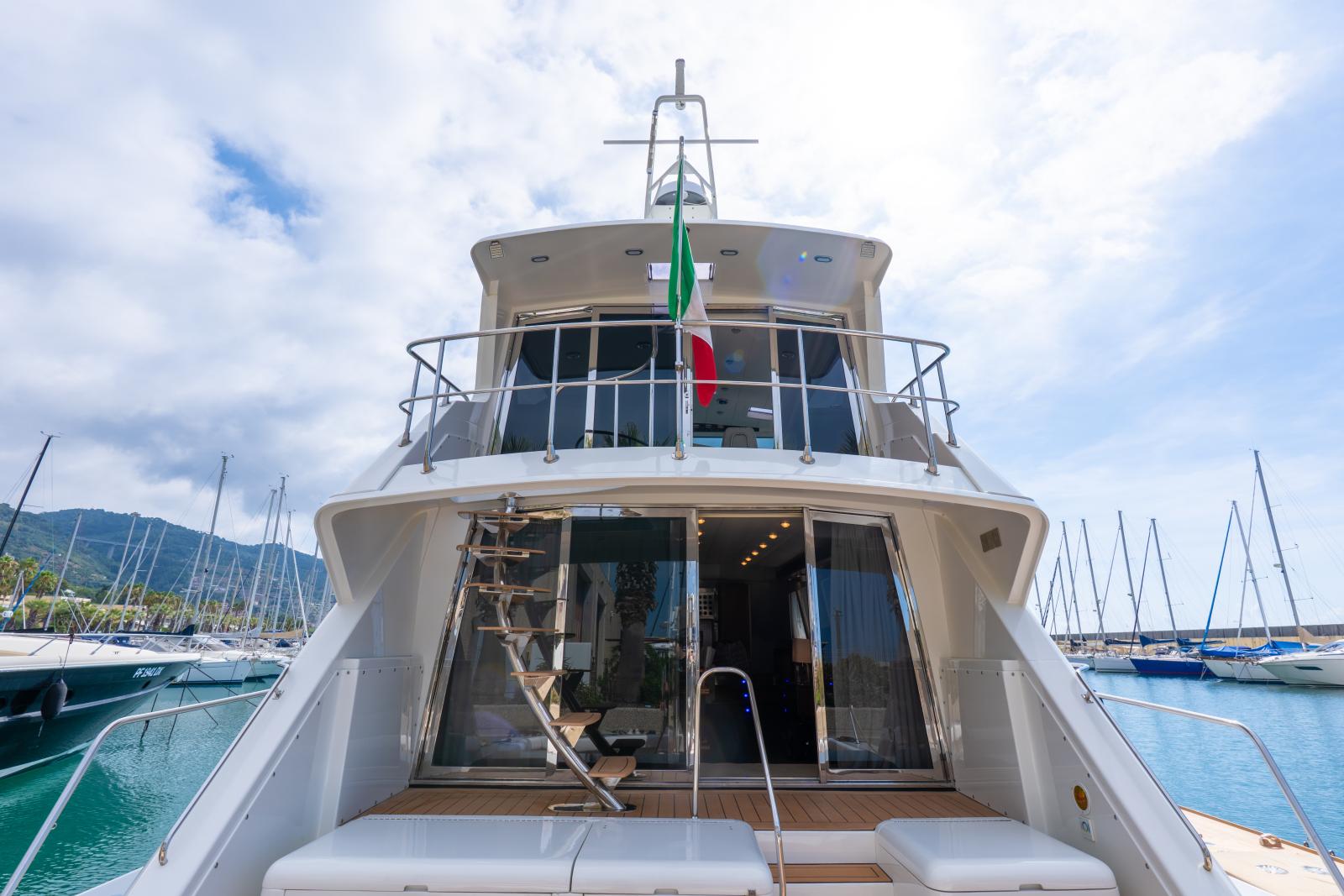

AISI 316 stainless-steel flybridge ladder with stainless-steel/teak steps
Multiplex carbon gangway + aft bathing platform
3 x Imtra Model 235KS windscreen wipers/washers on flybridge
Underwater halogen lights, 2 x docking lights, adjustable searchlight
Cockpit refrigerator with washbasin above
Salon and flybridge windows in AISI 316 stainless steel with sliding glass door
Refitting 2024 & 2025
Hull and superstructure painting
​​​​​​​Supply and installation of Deco teak decking
Fire extinguisher inspection/service
Air-conditioning system maintenance
Bow thruster installation
Battery charger installation
Starlink installation
Supply and installation of navigation electronics (autopilot, GNSS, GPS, radar)
Supply and installation of audio system
Mastervolt and Kohler generator maintenance and servicing
Installation of WC in crew cabin
Supply and installation of 150 L boiler
Application of protective film
Inspection/overhaul of rudders, sea cocks and transmissions
Supply and installation of navigation lights and underwater lights
Supply of mattress movers
Supply and installation of gangway
Routine maintenance of stern mooring capstans
Routine windlass maintenance
Note: Complete and detailed maintenance history available.
