gebr. schurenstedt motor yacht gaia Pre owned

- A REAL GEM -
Boat maintained in impeccable condition

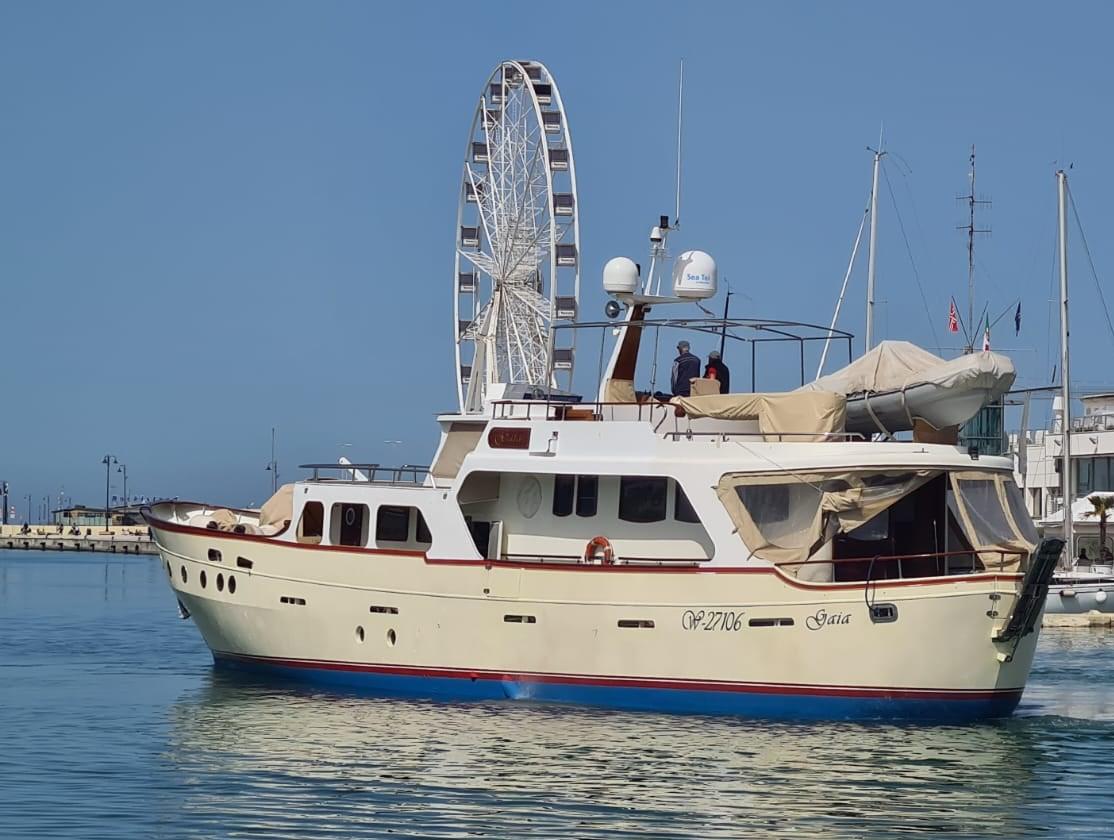

MOTOR YACHT GAIA has a history of great charm and interest behind it:
is a displacement shuttle built in the late 50s in the German Schurenstedt shipyard. Original name: Kormoran refurbished for a German owner as a pleasure M/Y, later sold to an Italian owner and transferred to the Mediterranean.

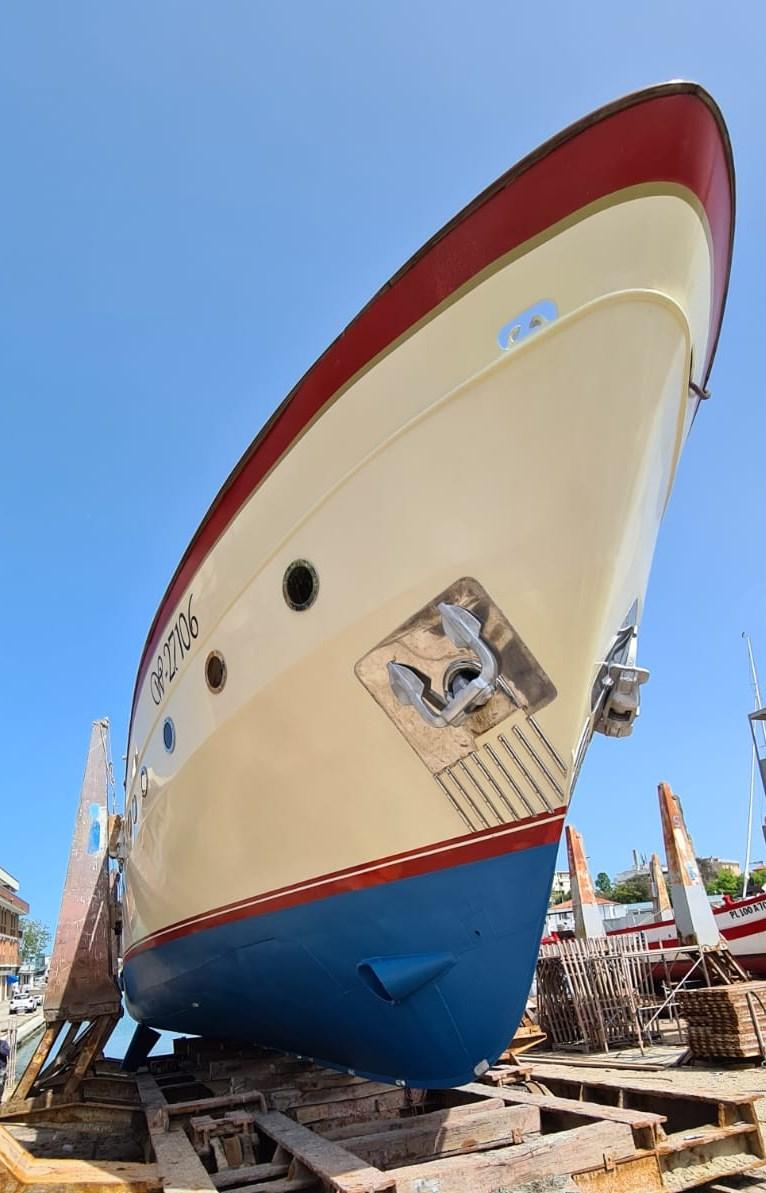

Over the years it has been acquired again by a Sicilian owner who, at the Rodriguez shipyard with the naval architect Biriaco, gives the shuttle its current configuration with the extension of the flybridge. The hull remains original to this day.
In the early 2000s, a new Italian owner kept the shuttle until 2008, when it was purchased by the current owner. The shuttle was in a covered storage in Genoa Voltri completely dismantled only with the new engines and generator set (0 hours) assembled but not installed and with the load-bearing structures.
Starting from 2008, the engines and generators were installed by Cummins of S. Margherita Ligure. The interiors designed by the naval architect of Rome Alessio Luini were made and assembled by a German carpentry workshop.
In 2010 the shuttle was transferred to the Marina di Genova for final installations and tests carried out by RINA Italiano. It was later recorded in Vienna.
All the on-board electronics were installed in 2009 and subsequently overhauled by Massimo Orlandini's Etruria Service of San Vincenzo (FI) in 2014.

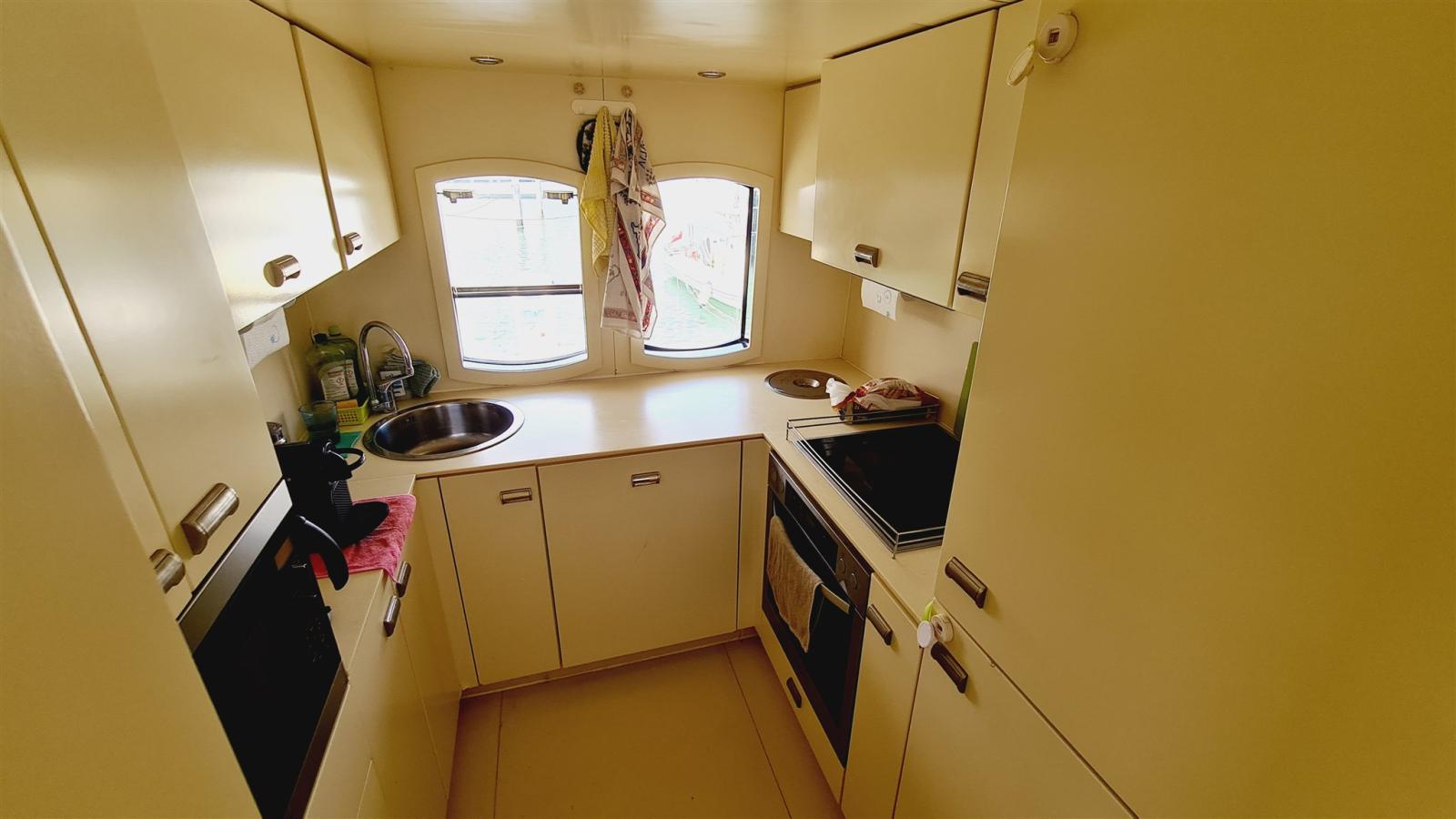

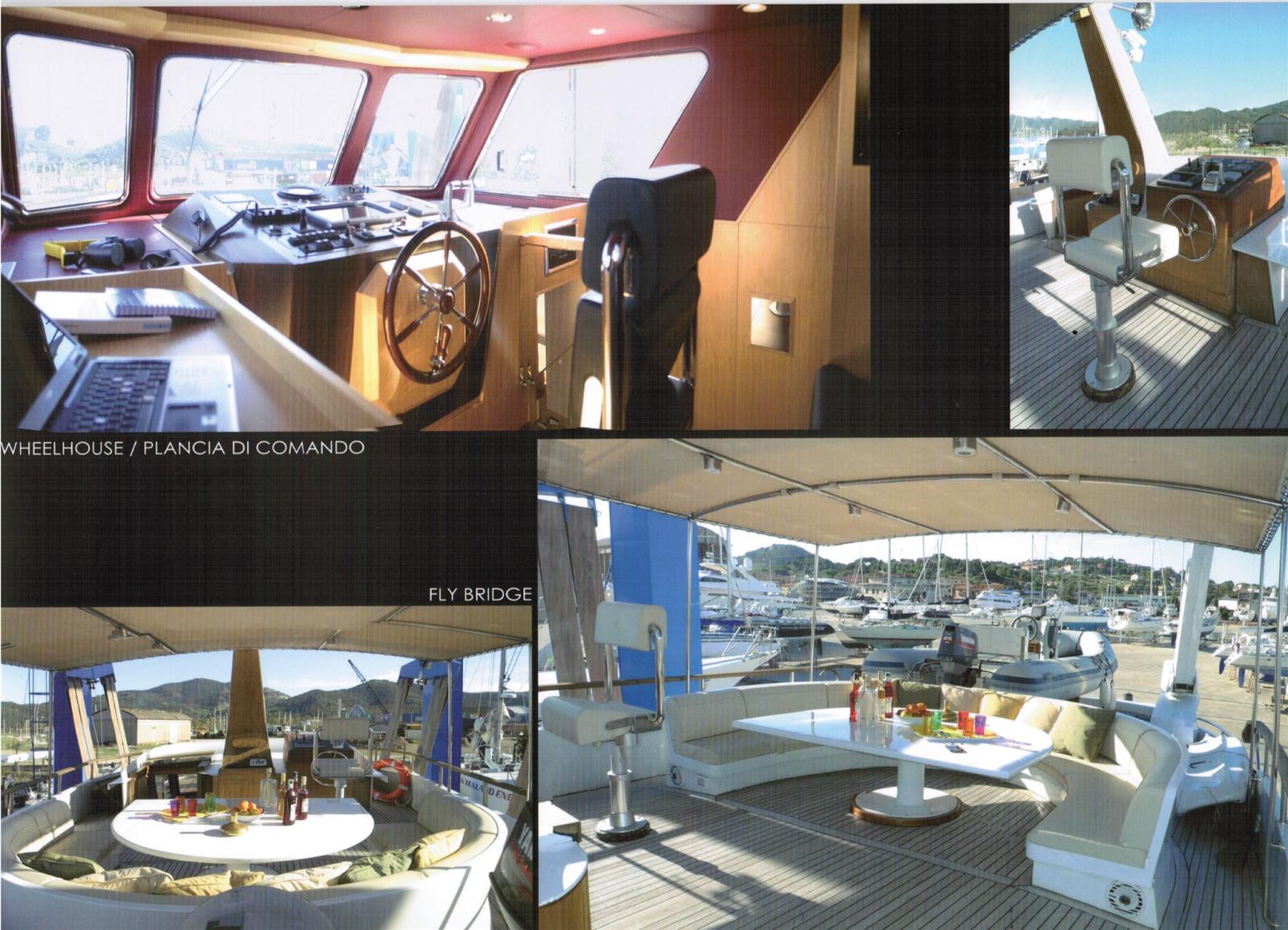

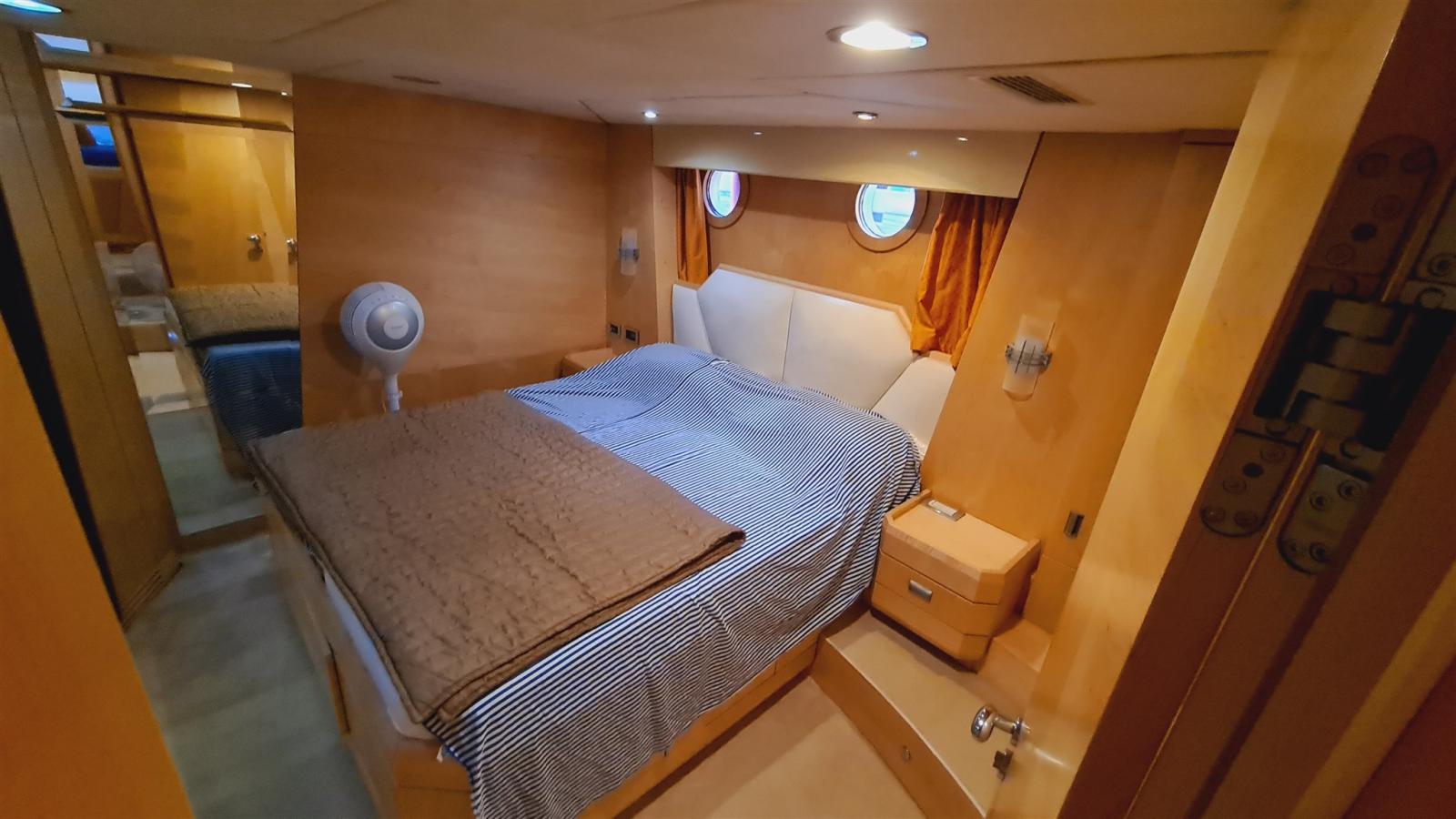

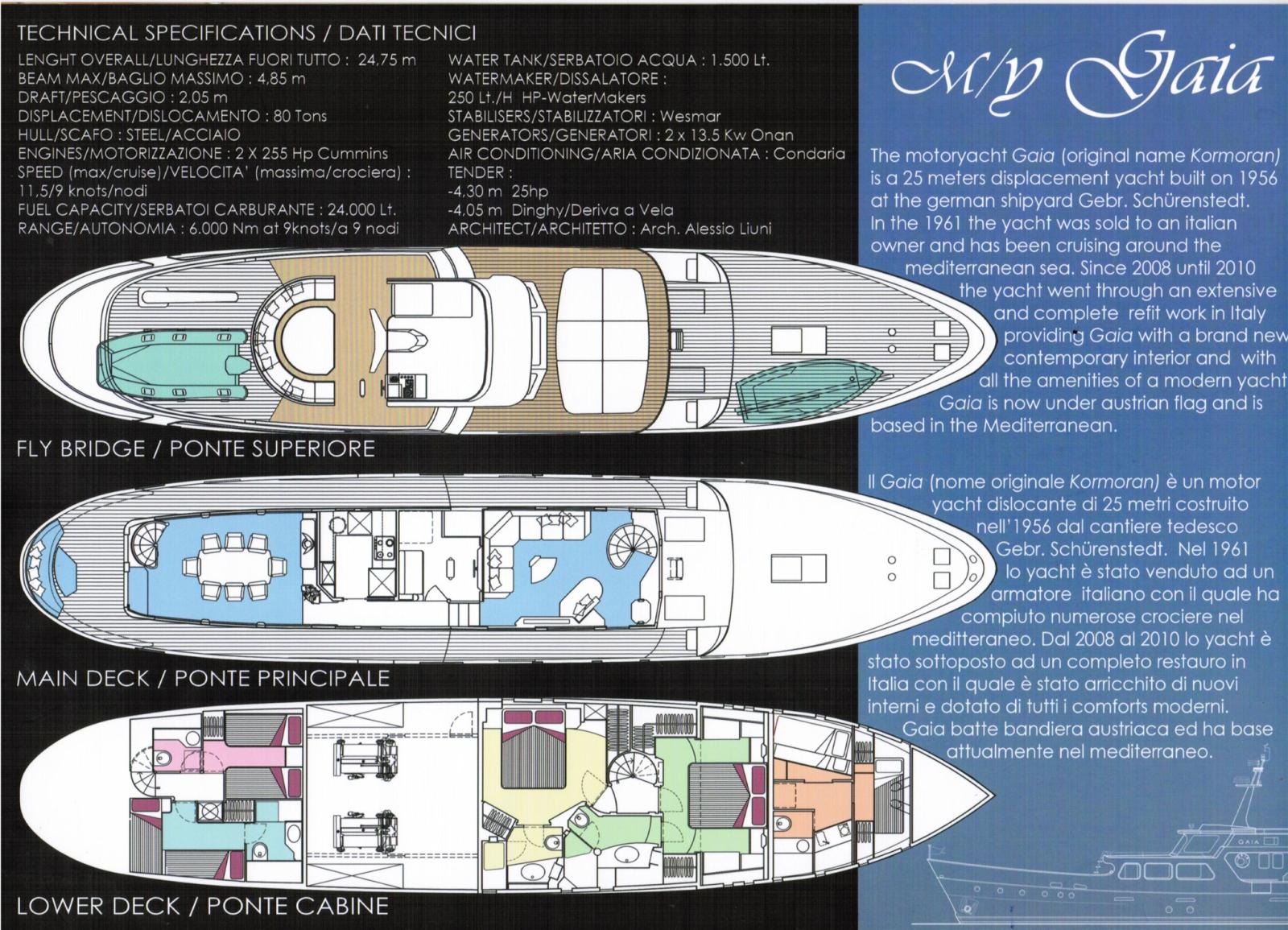

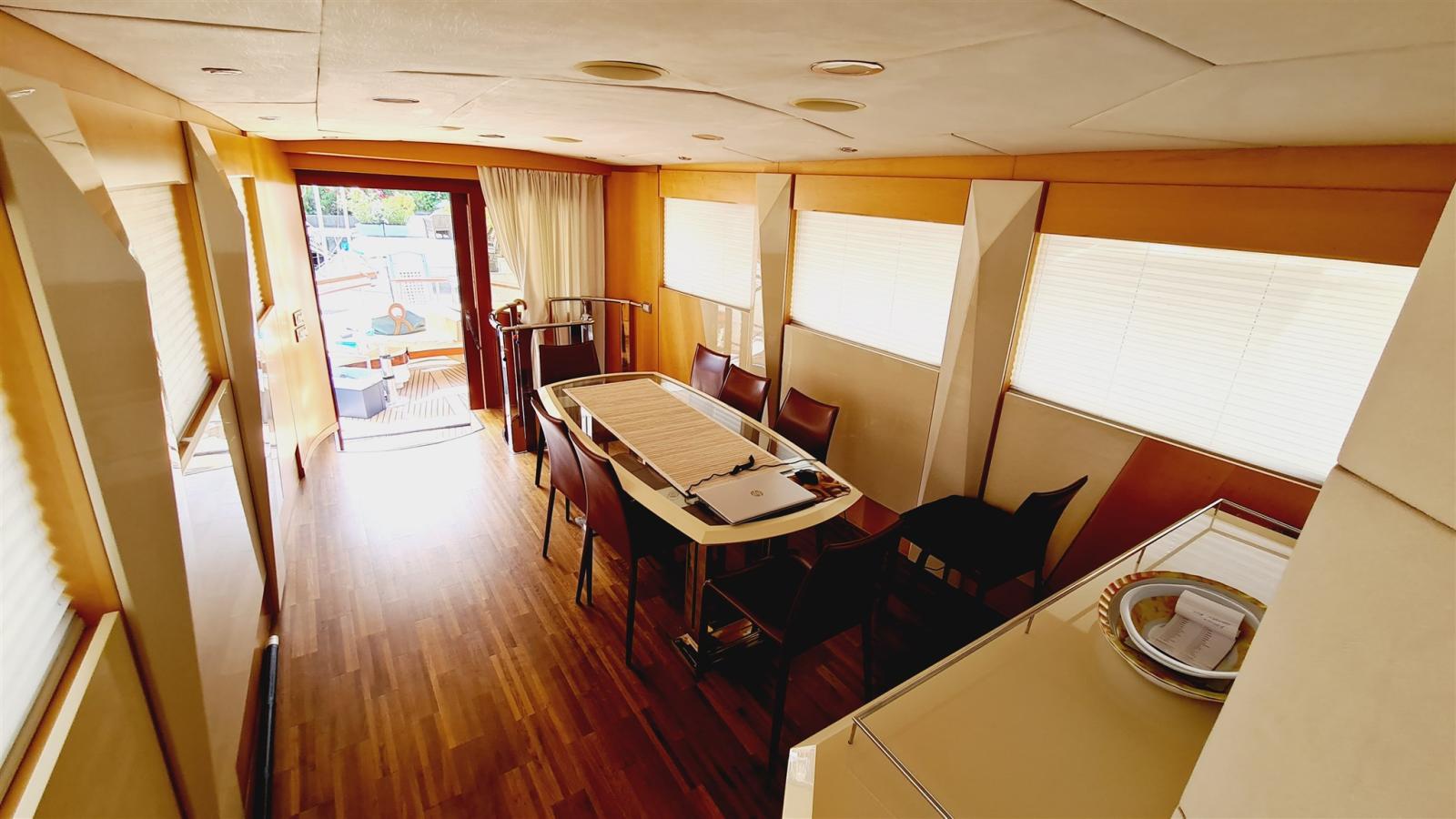

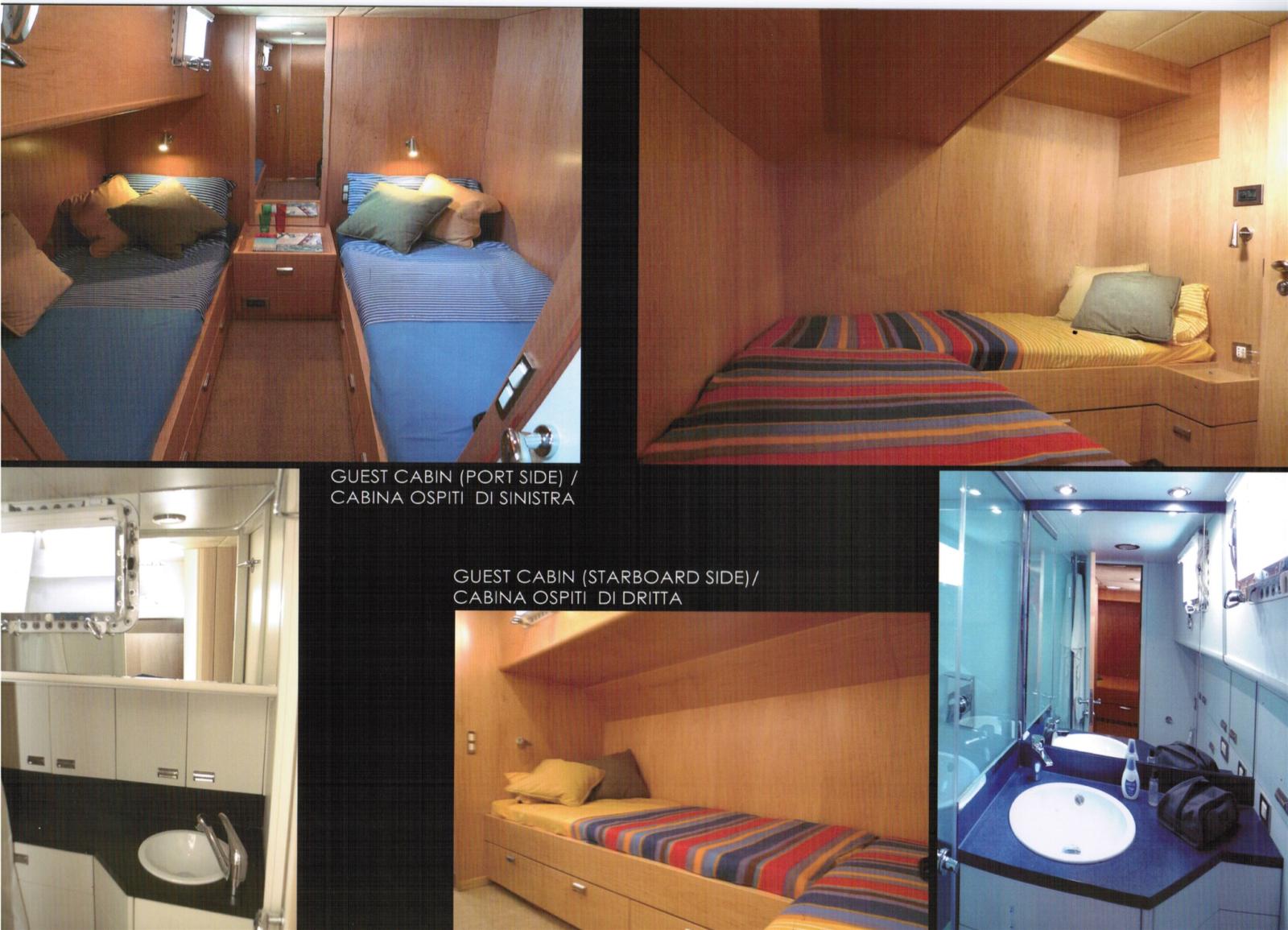

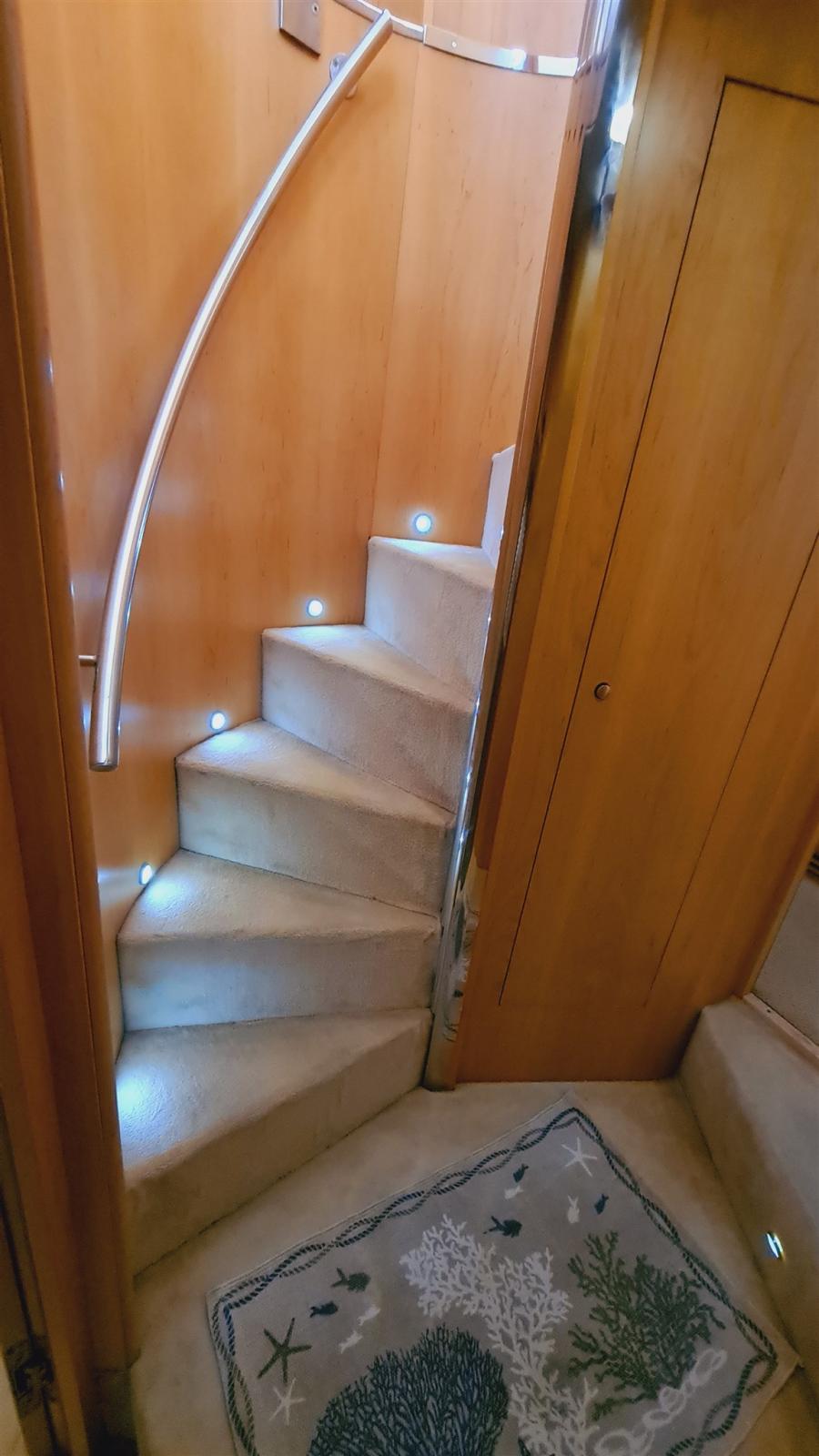

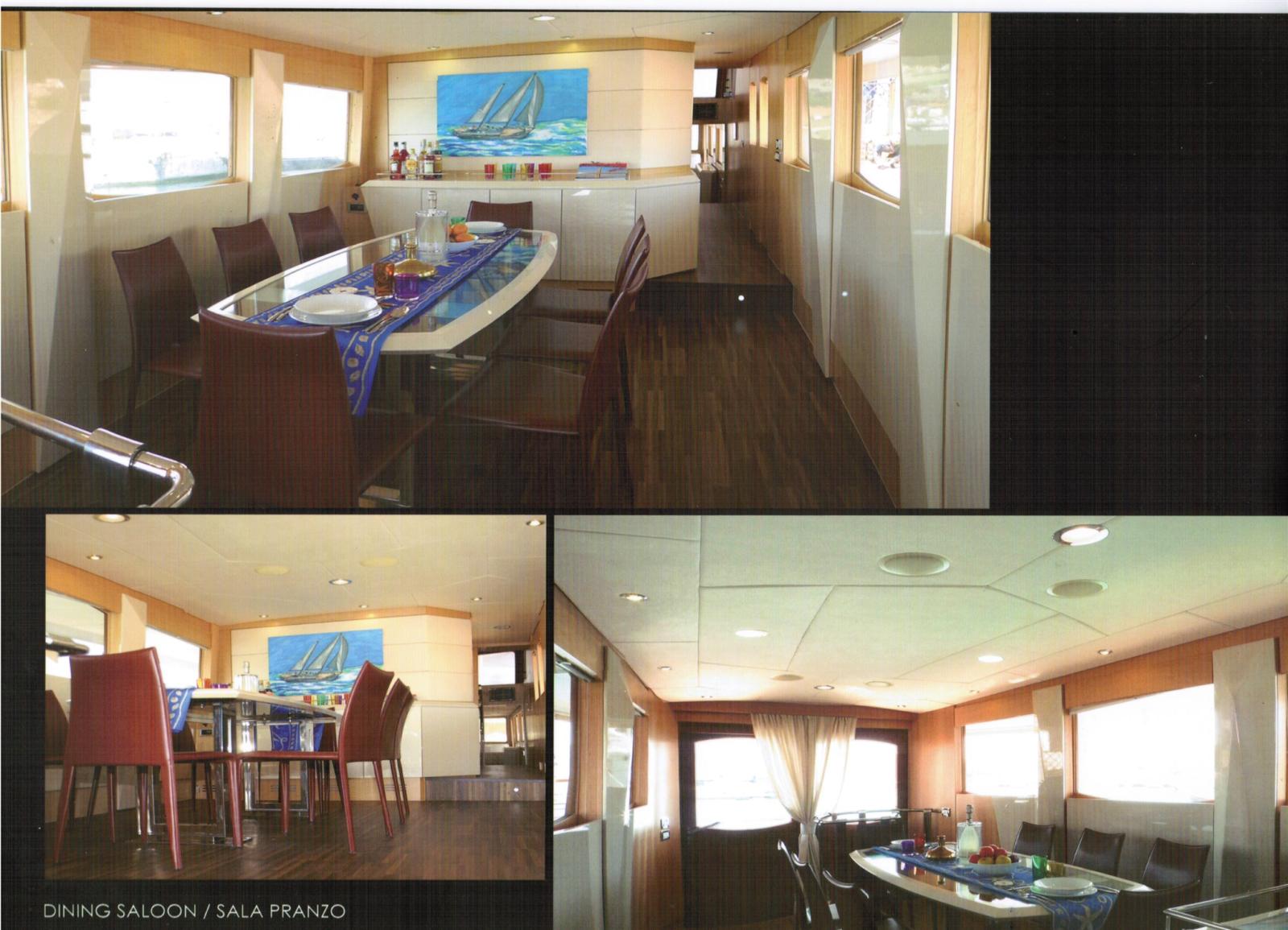

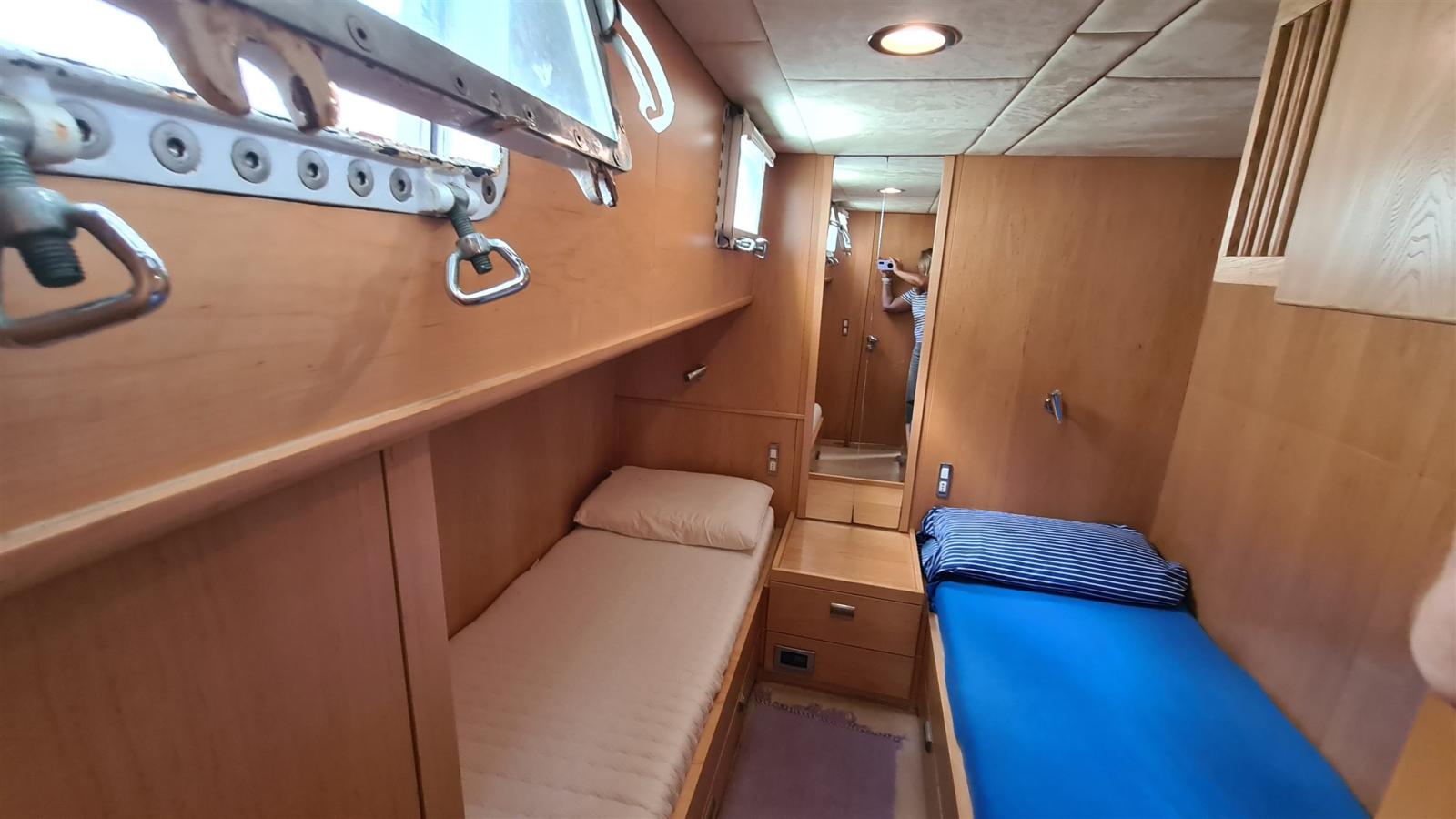

Structured on three decks, Gaia is organized with a dining area aft of which, a circular staircase leads to the lower deck, which houses two cabins and two bathrooms. From the aft saloon, continuing towards the bow on the left, there is the galley and, then, the bridge in an elevated position. There is also the main saloon, with a second circular staircase leading to the lower deck, reserved for the owner's cabin (full beam) and VIPs. The fly has a bimini and a large sunbathing area, as well as a second helm station and a 5-meter tender. On the deck, towards the bow, there is also a sailing dinghy of over 4 meters. Also towards the bow a companionway leads to the crew area (with two cabins).
The interiors have been furnished with maple wood and champagne-colored pearlescent lacquers (walls and furniture), while for the floors the main deck is characterized by a wenge wood in strong contrast with that of the walls and the lower deck by biscuit-colored carpeting. The ceilings are in Alcantara.
From 2008 to 2010
the yacht has undergone a complete restoration in Italy, where new interiors (the current ones) have been created by the architect Alessio Liuni and equipped with all modern comforts as well as the installation of new engines and generators.
Works 2023
The entire deck white has been repainted: Deckhouse sides and wall with two-component polyurethane spray and anti-rust treatment with subsequent polishing.
Total renovation of the seat benches of the aft outdoor dinette
Renovation of woods such as deckhouse glass frames, both hinged and sliding external doors, handrails, deck and flyer handrails. Sanded, colour impregnated with pad, finished with two-component polyurethane spray clear coat
Complete overhaul of engine room made as follows:
Raise all the dunnage. Where there was rust, scraped off with wire brushes, treated with acetone, applied 2 coats of rust converter, cleaned with antisilicone, applied 2 coats of gray primer (RAL 7040) two-component polyurethane, finished with two-component polyurethane paint 2 coats gray (RAL 7040).
Painting of diesels cleaned and degreased with a mixture of petrol and diesel, sanded, pickled with acetone and spray painted with matt white acrylic for high temperature (RAL 9010).
Cleaning and painting of the boxes of the generators, with matt white acrylic spry (RAL 9010) all carried out in the spray booth.
Replacement of the electronic board of the Condaria air conditioning system with a new one.
Works 2024

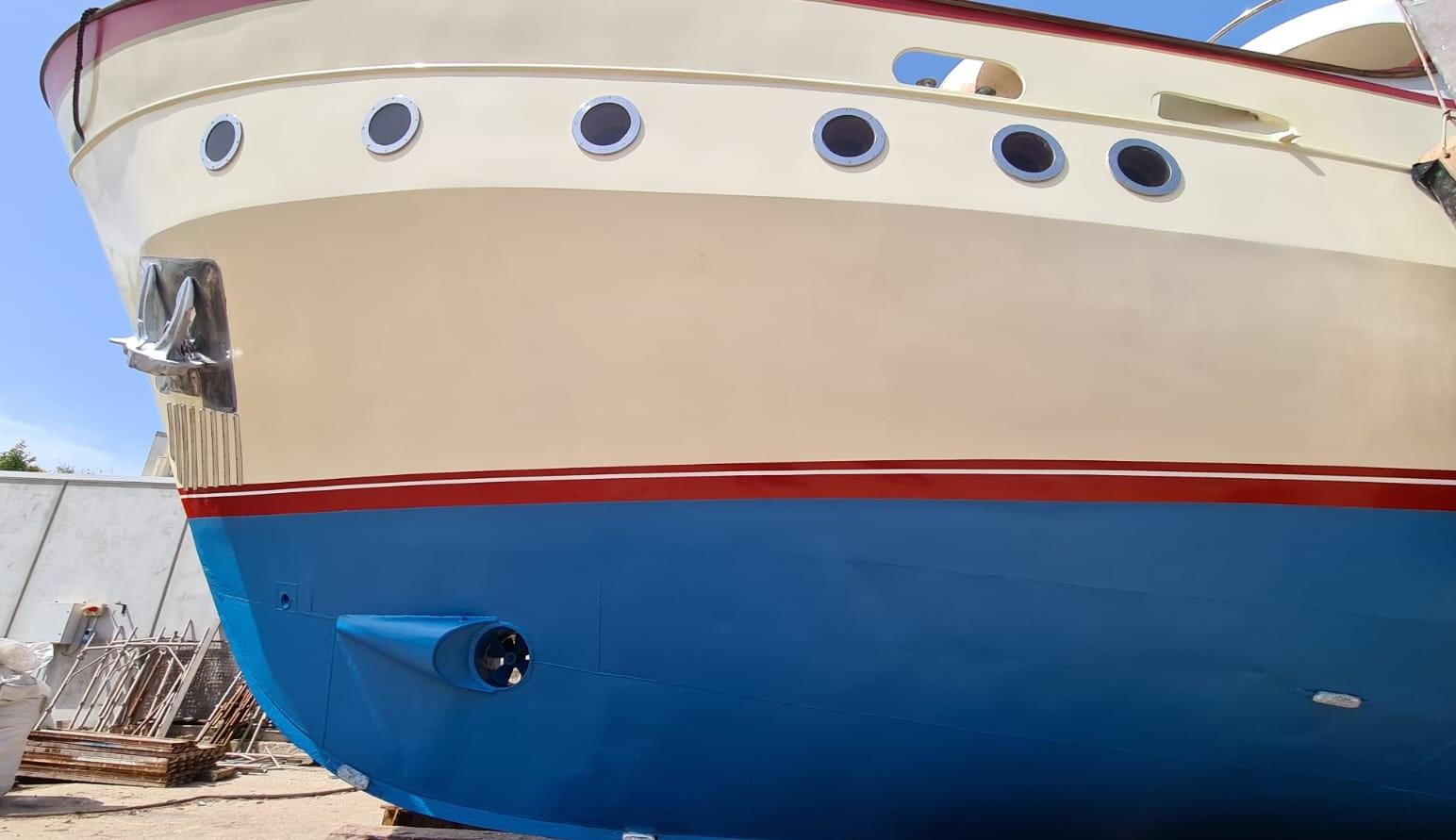

Deck sanding - hull check, antifouling and zinc - fuel tank cleaning
Works 2025
Repainting of chain wells - cleaning / control of the grey water circuit - cleaning / overhaul of air conditioning with replacement of all room filters - hull and zinc - engine service - replacement of the Victron color control
Navigation equipment:
Rudder angle indicator, Electronic engine control, Chain counter, Display, 2 Autopilot (Raymarine Smartpilot ST3002), Plotter with GPS antenna (Garmini GPSMAP 5015 - GPSMAP 4000), 2 Radar (Garmin), 2 VHF Radio (Icom IC M603- Icom IC-M33 portatile), 2 Wind Station (Garmin GMI 10).
Staging and technical:
Engine Alarm, 2 Anchor (Hull 200Kg + 100mt catena da 14 - Hull 200 Kg + 100mt catena da 12), Water pressure pump, 20 Batteries (servizi 24V 1500ah), Teak Side Decks, Battery charger (Viktron), Shore power cable, Special Colour, Guard rail, Deck Shower, Bow Thruster (500ah), Directional Spotlight, 2 Tender Crane (Bioinox), Fire Extinguishing System, Courtesy Lights, Solar panels, Gangway (idraulica a poppa Bioinox), Teak deck, Entry door, 2 Side door, Teak Cockpit, Shorepower connector, Water harbor connector system, Electric Windlass (Lofran's Titan idraulico con telecomando), Gang Board (laterale con candelieri), swimming ladder (da agganciare alla scala reale), Stabilizers (Wesmar RS series), cockpit table, Tender (Loker Boat 4,30m+fuoribordo Yamaha 25hp 2T), Horn.
Domestic Facilities onboard:
Air Conditioning (Condaria PWCM), Warm Water System (Indesit lt 75), Inverter Air Conditioning, Watermaker (150 l/h HP WaterMakers con comando remoto), Waste Water Plant, Fuel Tank Indicator, Water Tank Meter, Inverter (Viktron), Interior wooden floor, 220V Outlets, Black Water Tank, Video camera (di controllo), 5 Electric Toilet.
Security equipment:
Barometer, First aid kit, Safety equipment beyond 50 miles, PFDs, 2 Lifebuoy With Safety Rope and Light Buoy, Liferaft (12 px valigia rigida).
Entertainment:
Speakers, Satellite TV antenna, Radio AM/FM.
Kitchen and appliances:
Galley, ICE Maker, Washer dryer (Hover 5kg), Dishwasher (Miele), Coffee Machine (Nespresso), Electric hot plate.
Upholstery:
Cushions, Stern Cushions, Bow Cushions, Fly Bridge Cuscions, Cockpit Cushions, Window Cover, Sunshade, Curtains.
Accessories notes:
Alfa Lavel diesel water separator centrifuge
Sailing dinghy 4.05 mt
Pressure washer
Full bed linen and towels for all cabins
Portable radios for manoeuvring communications
Compressor
3 vacuum cleaners + 1 cordless vacuum cleaner
